Chapter 3 Removing and Replacing Covers
14
Remove two screws securing
the bracket to the rack.
Leave the other screws securing
the bracket to the chassis.
Remove two screws securing
the hinge to the rack.
Leave the other screws securing
the hinge to the chassis.

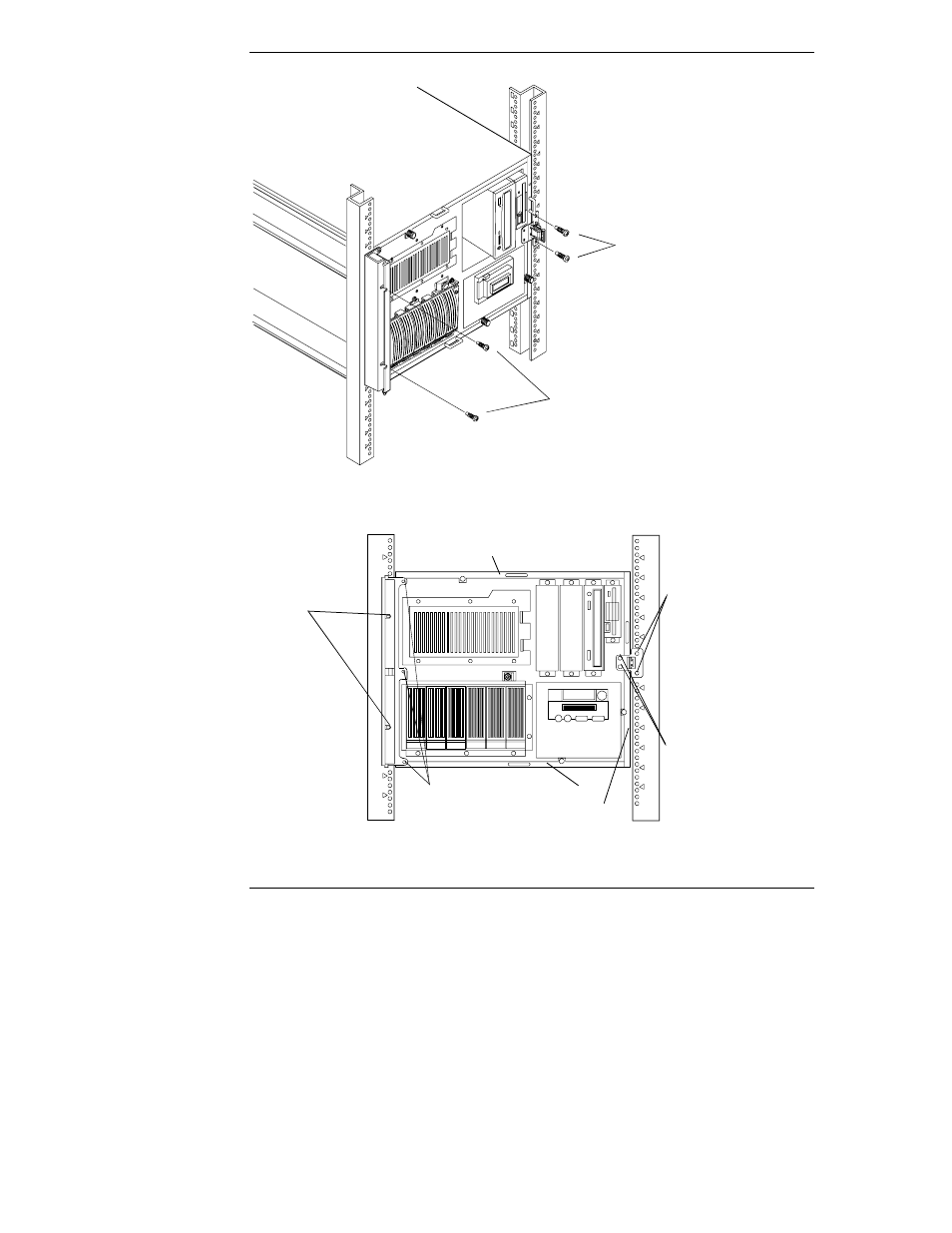

Figure 3-5. Unscrewing the HP NetServer LH 3r Chassis From the Rack
Remove two screws
securing NetServer
to rack.
Do not remove three
screws securing
the hinge to the NetServer.
Remove two screws
securing NetServer
to rack.
Do not remove two
screws securing
the bracket to the
NetServer.
Cover 1
Cover 3
Cover 2
Figure 3-6. Screw and Cover Locations
