MSA1000 Controller
16 MSA1000 Controller User Guide
3. As illustrated in Figure 3 , unlatch the controller cover clips 1 on the rear of
the controller and then raise the cover 2.
Note: The controller in Figure 3 has been rotated so the side and rear of the controller
are visible.
4. Simultaneously unlatch the clips that are holding the MSA1000 Controller
cache in place 3.
5. Carefully pull the cache away from the controller board 4.

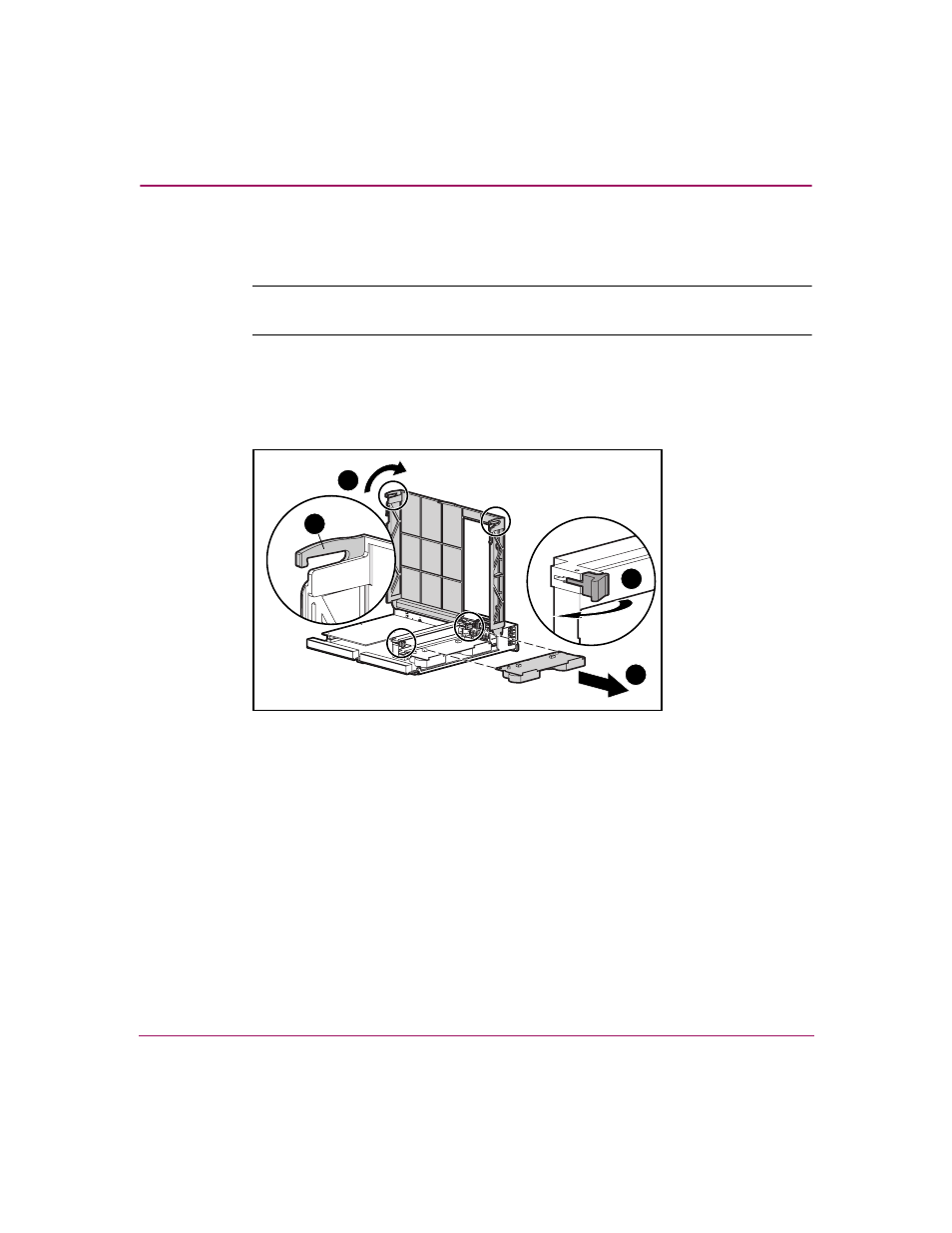

Figure 3: Removing the cache module
4
2
3
1
