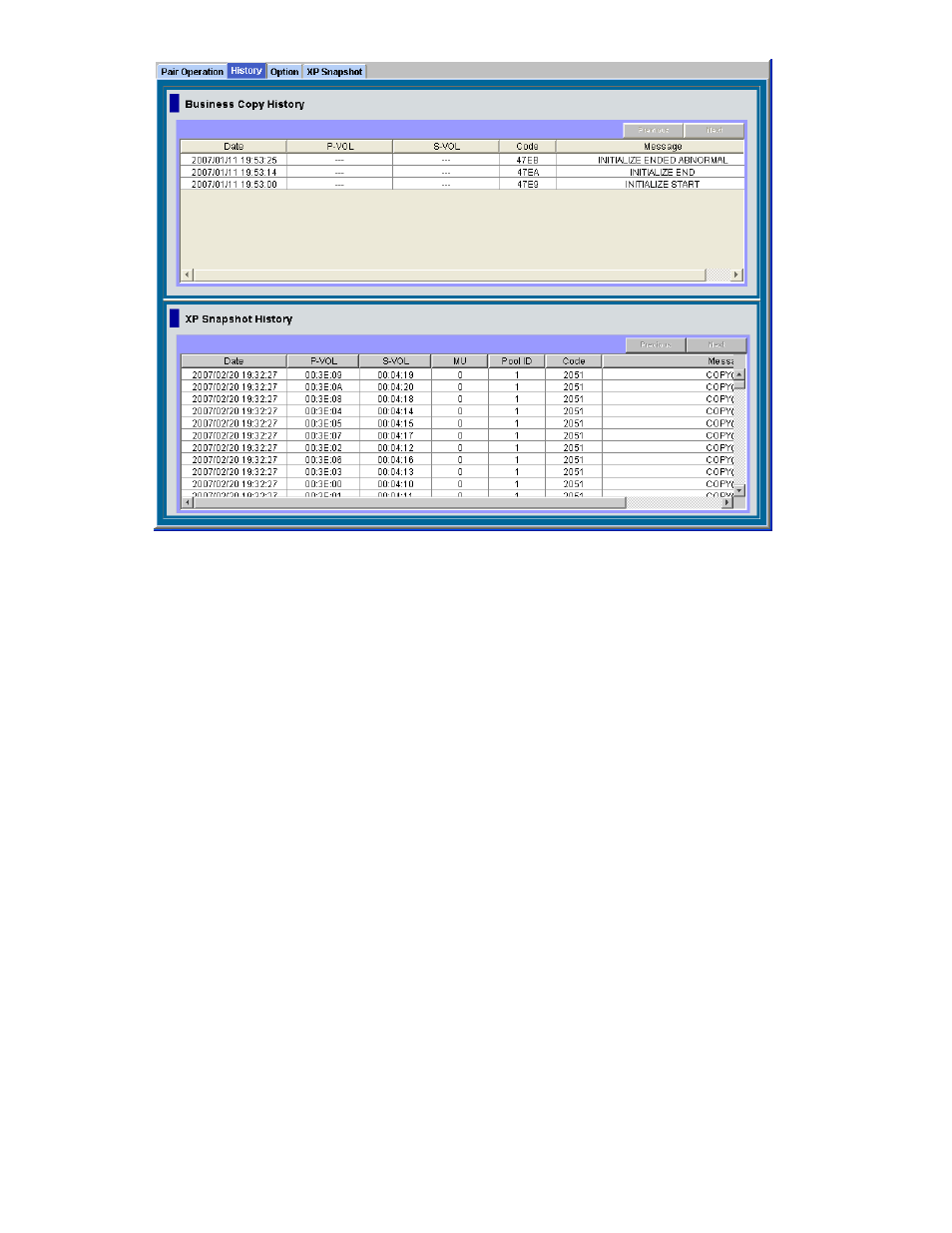

Figure 26 History Window
The upper area of the History window lists the operation history of Business Copy pairs, and the lower
area of the window lists the operation history of XP Snapshot pairs. For details about the operation
history of XP Snapshot pairs, see the HP StorageWorks XP24000 Snapshot User’s Guide. The upper area
of the History window displays the following items.
•
The Previous button allows you to return to the previous page of the list. This button is selectable
only when the number of operation histories in the storage system exceeds 16,384, which is the
maximum number of histories that can be displayed on one page. The button is grayed out if the
total number of operation histories in the storage system is less than 16,384.
•
The Next button allows you to turn to the next page of the list. This button is selectable only when
the number of operation histories in the storage system exceeds 16,384 volumes, which is the
maximum number of histories that can be displayed on one page. The button is grayed out if the
total number of operation histories in the storage system is less than 16,384.
•
Date: Displays the date and time (YYYY/MM/DD hour/min/sec) when a Business Copy pair or
volume operation has been performed.
•
P-VOL: Displays the LDKC:CU:LDEV of the P-VOLs used for pair operation in the past.
•
S-VOL: Displays the LDKC:CU:LDEV of the S-VOLs used for pair operation in the past.
•
Code: Displays the Business Copy reference codes.
•
Message: Displays the messages to inform the conditions of the past Business Copy pair
operations (see
XP24000 Business Copy Software User's Guide
