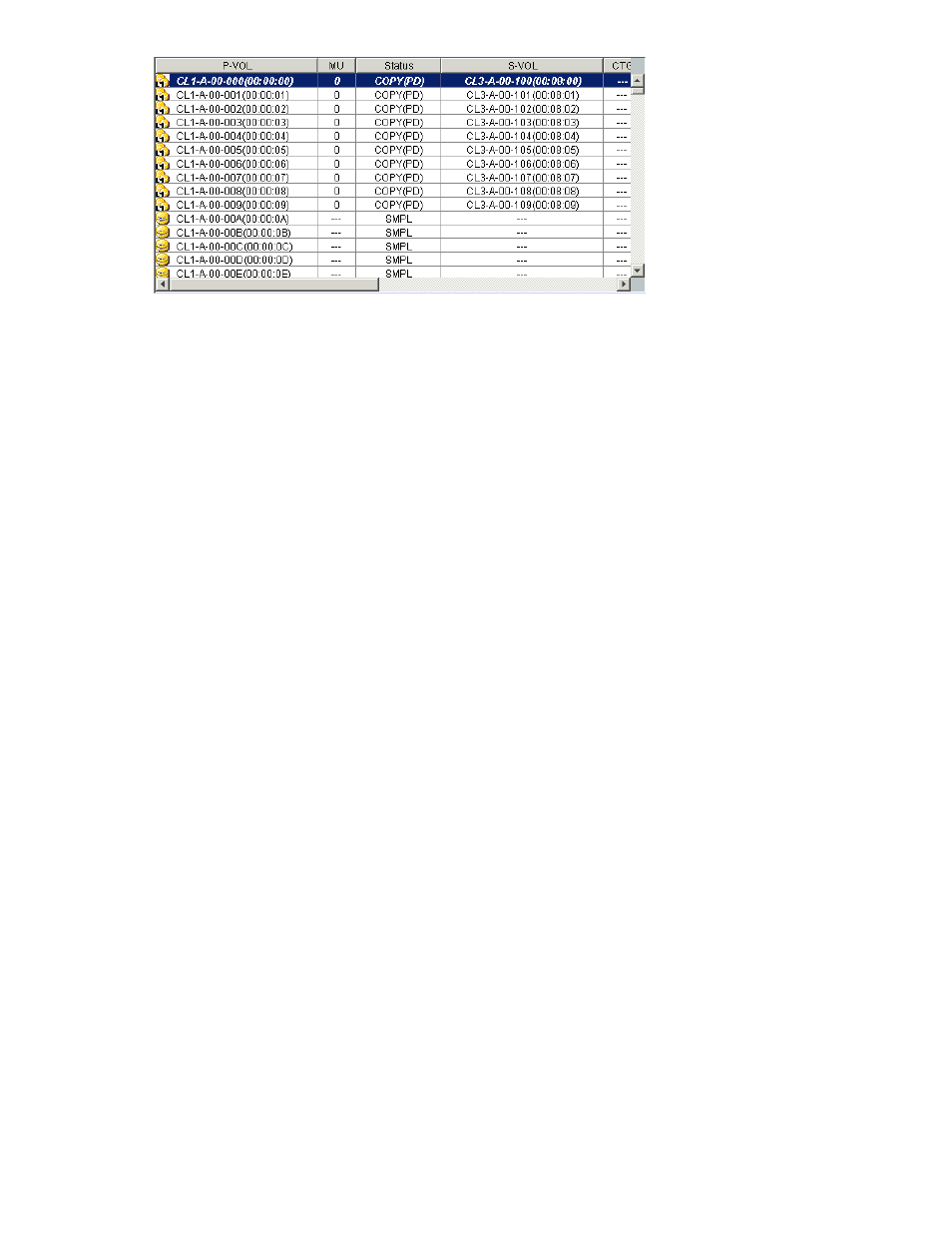

Figure 24 The Volume List Displaying Volumes (L1 pairs)
The Volume List lists all the installed volumes (LUs) on the selected port and displays the following
information for each volume:
•
Message: A message will be displayed when there is no volume or pair to be displayed. If you
see the message in the Volume List, click a different icon in the Tree on the left area of the Pair
Operation window.
•
P-VOL: Information about P-VOL is displayed in AAA-BB-CCC(XX:YY:ZZ) format.
• AAA: The port ID (cluster and channel number)
• BB:
The
group
number
of
host
group
• CCC: LU number
• XX:YY:ZZ: LDKC number:CU number:LDEV number
Note:
An LDEV number that ends with a # mark indicates that the LDEV is an external volume
(for example, 00:00:01#). An LDEV number that ends with a letter X indicates that the LDEV is
a virtual volume used by XP Thin Provisioning (for example, 00:00:01X). For details regarding
the external volumes, see the HP StorageWorks XP24000 External Storage Software User’s
Guide. For information about XP Thin Provisioning, see the HP StorageWorks XP24000 Thin
Provisioning Software User's Guide.
•
MU: The MU number of the Business Copy pair formed with the P-VOL. For details about what will
be displayed in this item if you select XP Snapshot pairs, see the HP StorageWorks XP24000
Snapshot User’s Guide.
•
Status: The Business Copy pair status of the volume pair. For details about the XP Snapshot pair
status, see the HP StorageWorks XP24000 Snapshot User’s Guide.
•
S-VOL: Information about S-VOL is displayed in AAA-BB-CCC(XX:YY:ZZ) format.
• AAA: The port ID (cluster and channel number)
• BB:
The
group
number
of
host
group
• CCC: LU number
• XX:YY:ZZ: LDKC number:CU number:LDEV number
Note:
An LDEV number that ends with a # mark indicates that the LDEV is an external volume
(for example, 00:00:01#). An LDEV number that ends with a letter X indicates that the LDEV is
a virtual volume used by XP Thin Provisioning (for example, 00:00:01X). For details regarding
the external volumes, see the HP StorageWorks XP24000 External Storage Software User’s
Guide. For information about XP Thin Provisioning, see the HP StorageWorks XP24000 Thin
Provisioning Software User's Guide.
•
CTG: The consistency group number of the S-VOL. If no consistency group is set for the S-VOL, --- is
displayed. For details about what will be displayed in this item if you select XP Snapshot pairs,
see the HP StorageWorks XP24000 Snapshot User’s Guide.
•
SvolMode: The status of the S-VOL. For details about what will be displayed in this item if you
select XP Snapshot pairs, see the HP StorageWorks XP24000 Snapshot User’s Guide.
• S-VOL Write: When the S-VOL status is PSUS(SP), or PSUS and the host writes to the S-VOL,
W is displayed.
