Σ(α) means the total number of resources that need to be used,
(β) means the total number of resources available in the storage system,
(β) = 26,176 or 104,768, or 209,600.
For details, see Table 20 (page 34) .
And Σ(γ) stands for the total number of relationships.
The following figure shows seven relationships that are created with 3390-3 volumes, and three
relationships that are created with 3390-L volumes (32,769 CYL).

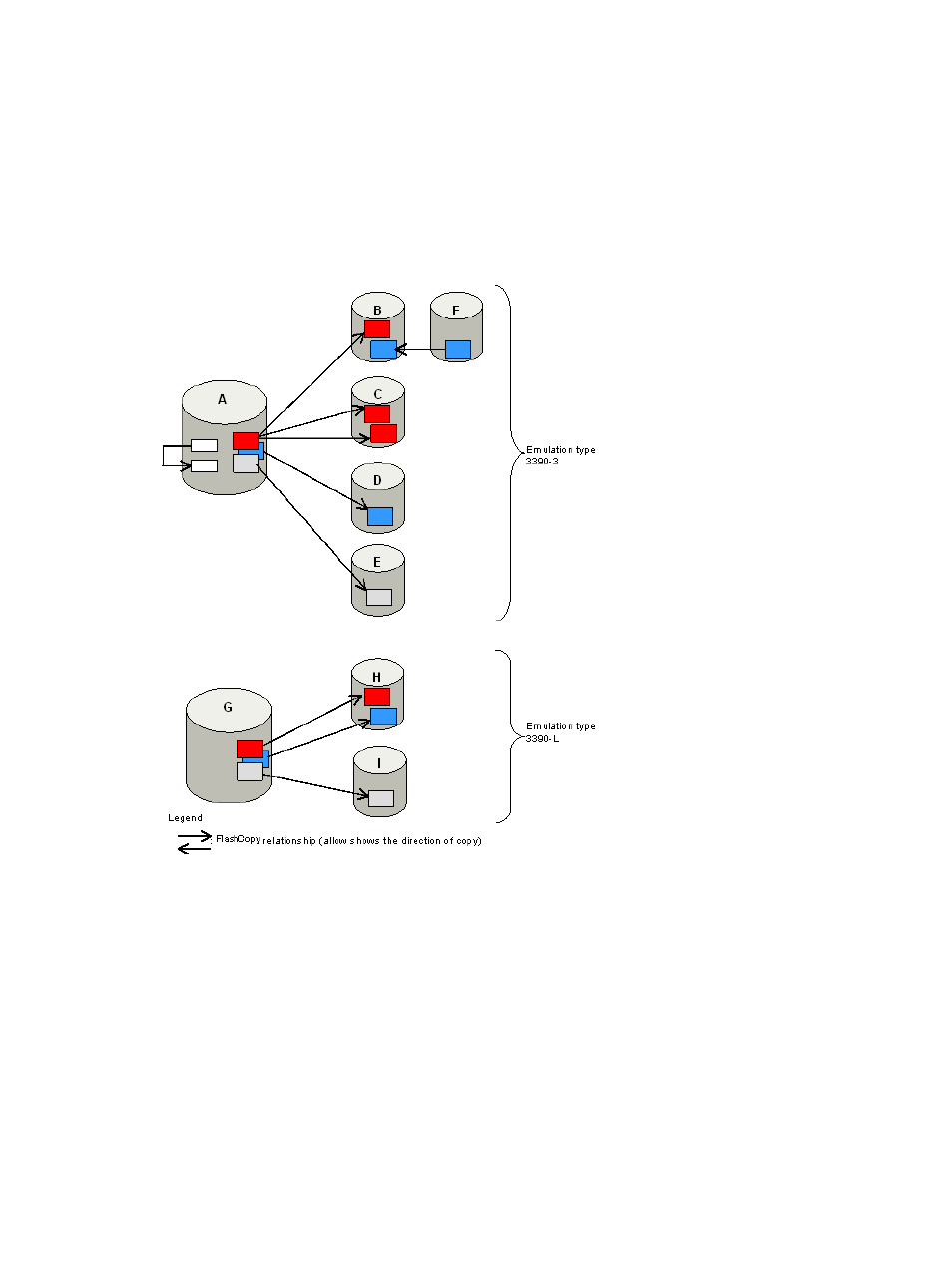

Figure 27 Reference example for calculating the number of relationships
As shown in this figure, the total number of resources used per pair is calculated as:
Resources used for A - I = (9 + 3) + 3 + 3 + 3 + 3 + 3 + (25 x 3) + 25 + 25 = 152.
The conditions for the number of relationships you can create are:
Σ(α) ≤ (β) and Σ(γ) ≤ 1,048,575
In the case of the example shown in the figure, Σ(α) ≤ (β) is:
•
54 ≤ 26,176 or 104,768, or 209,600.
While Σ(γ) ≤ 1,048,575 is:
•
10 ≤ 1,048,575.
Since the example shown in the figure above meets the conditions shown above, you can establish
all of the relationships in that figure.
