HP DL380z Gen8 Virtual Workstation User Manual
Page 84

9.

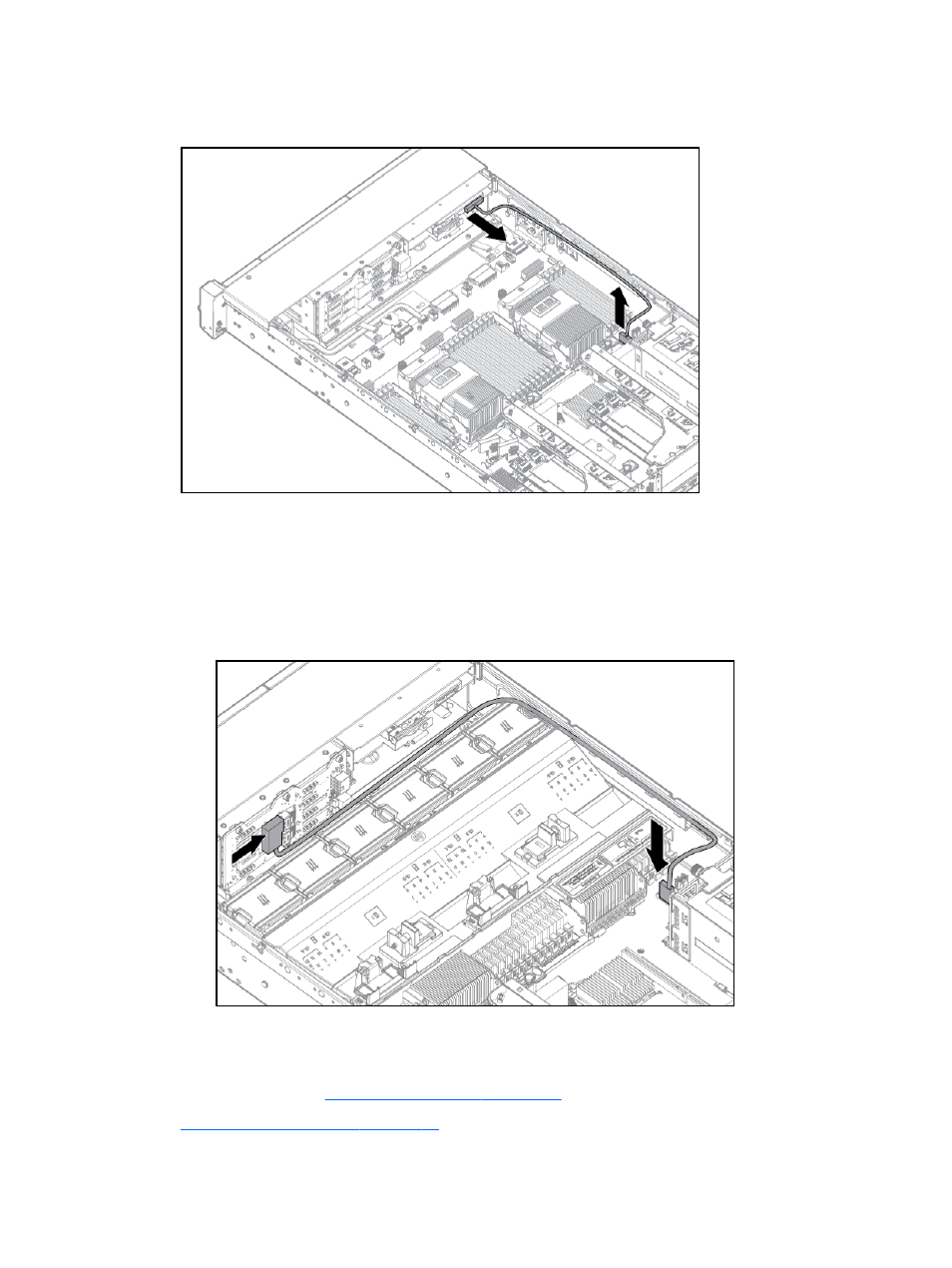

Disconnect the SATA cable from the optical drive and the SATA connector on the system board.
The optical bay is disabled with the chipset SATA cable option.
10.
Connect the chipset SATA cable:
a.
Connect the chipset SATA cable connector to the chipset SATA controller port on the
system board. The chipset SATA connector on the SATA cable is narrower than the chipset
SATA controller port header on the system board.
b.
Connect the remaining chipset SATA cable connector to the SATA header on the hard
drive cage.
11.
Coil the cables behind the hard drive backplane to minimize airflow impact.
12.
Install the fan cage.
13.
Install the air baffle (
Remove the air baffle on page 28
14. Install the PCI riser cage on page 26
78 Chapter 6 Cabling
