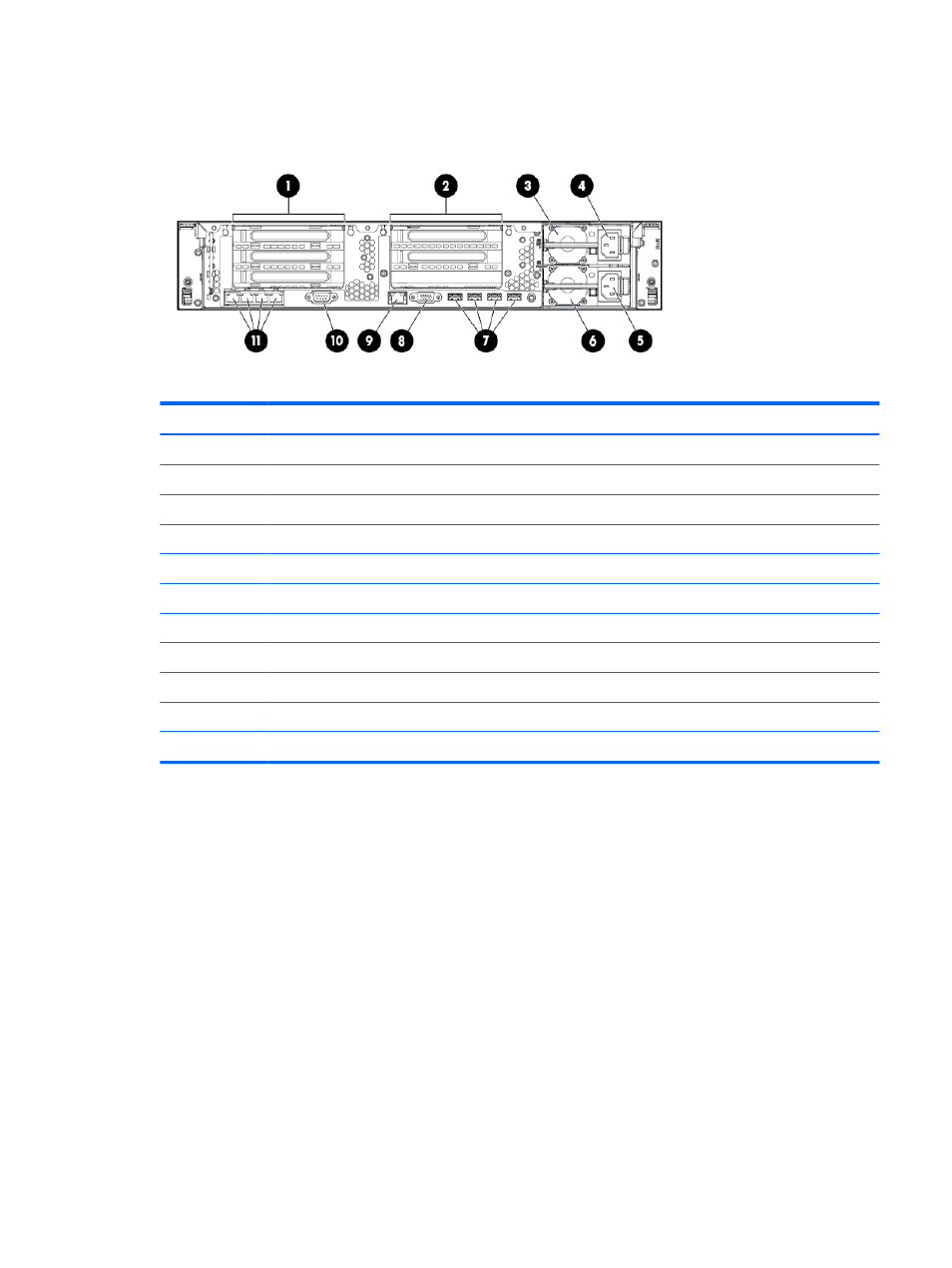

Rear panel components

Item

Description

1

PCIe slots 2–3 (top to bottom)

2

PCIe slots 4–5 (top to bottom)

3

Power supply 1 (PS1)

4

PS1 power connector

5

PS2 power connector

6

Power supply 2 (PS2)

7

USB connectors (4)

8

Video connector

9

iLO connector

10

Serial connector

11

FlexibleLOM ports (Shown: 4 x 1 Gb/Optional: 2 x 10 Gb); port 1 on right side

Rear panel components

7
