HP DL380z Gen8 Virtual Workstation User Manual
Page 83

5.

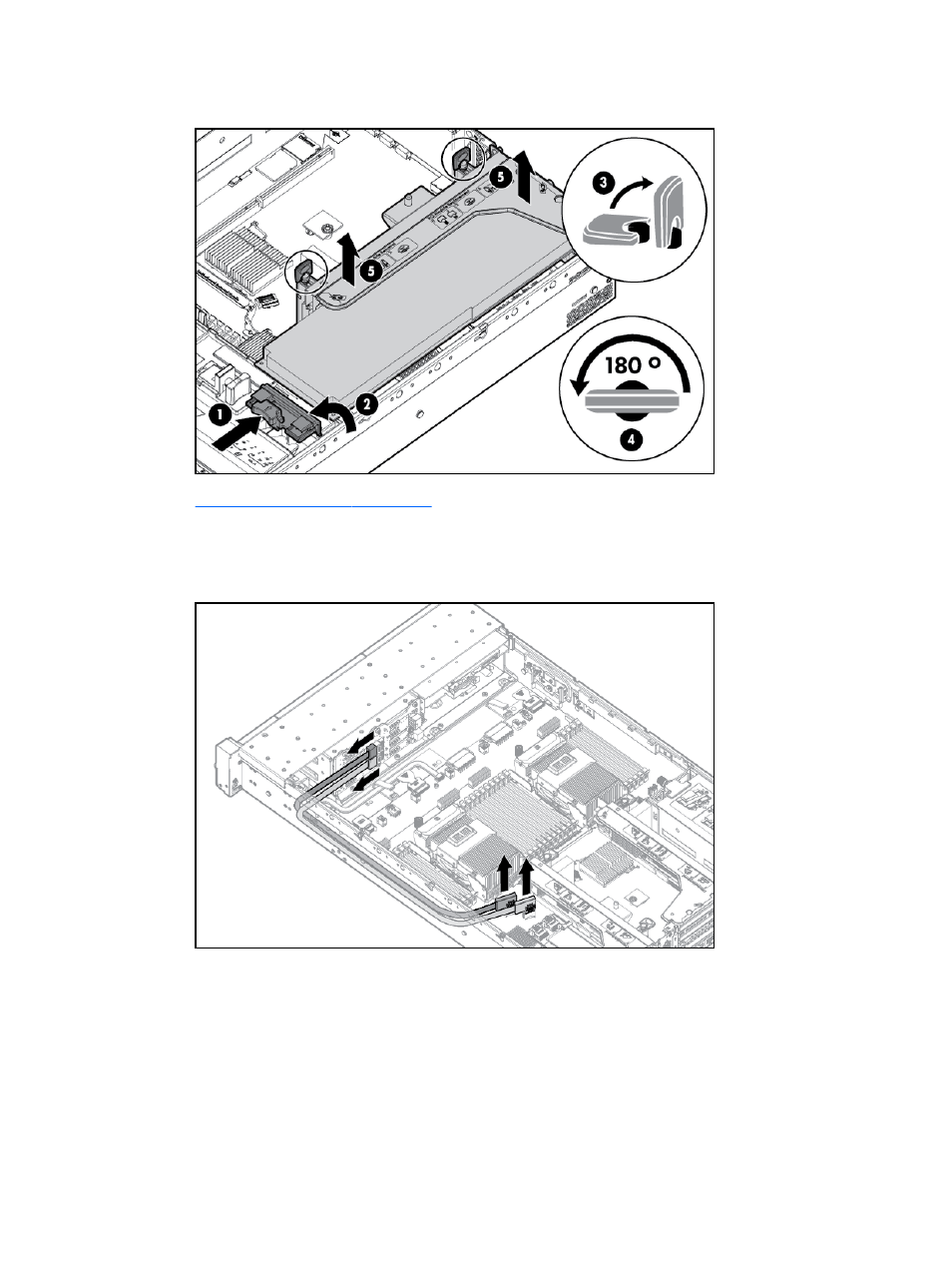

Release the full-length expansion board retainer, and then remove the PCI riser cage.
6.
Remove the air baffle on page 28
7.
Remove the fan cage.
8.
Disconnect any SAS cables from the hard drive cage and either the embedded SAS controller or
an optional SAS controller. Do not disconnect the power cable.
Chipset SATA cable option 77
