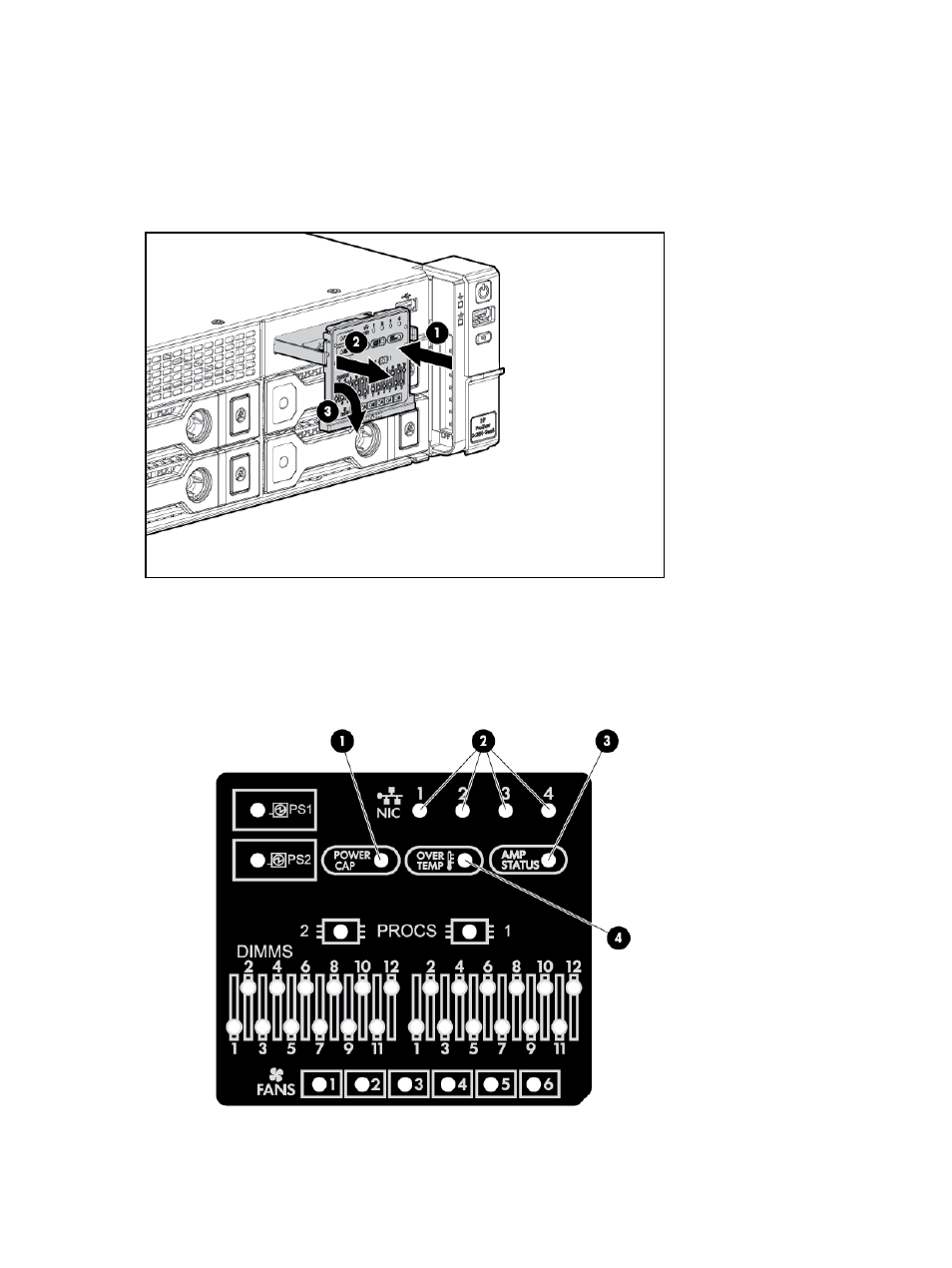

Access the Systems Insight Display
To access a pop-out HP Systems Insight Display:
1.
Press and release the panel.
2.
After the display fully ejects, rotate the display downward to view the LEDs.
Systems Insight Display LEDs
The HP Systems Insight Display LEDs represent the system board layout. The display enables
diagnosis with the access panel installed.
4
Chapter 2 Component identification
