d Use the supplied tape measure to ensure that the rails
are fitted diametrically opposite each other
(see fig. C.3-1a. ).
Distance A1 must equal distance A2. Secure the rails by
tightening the straps.

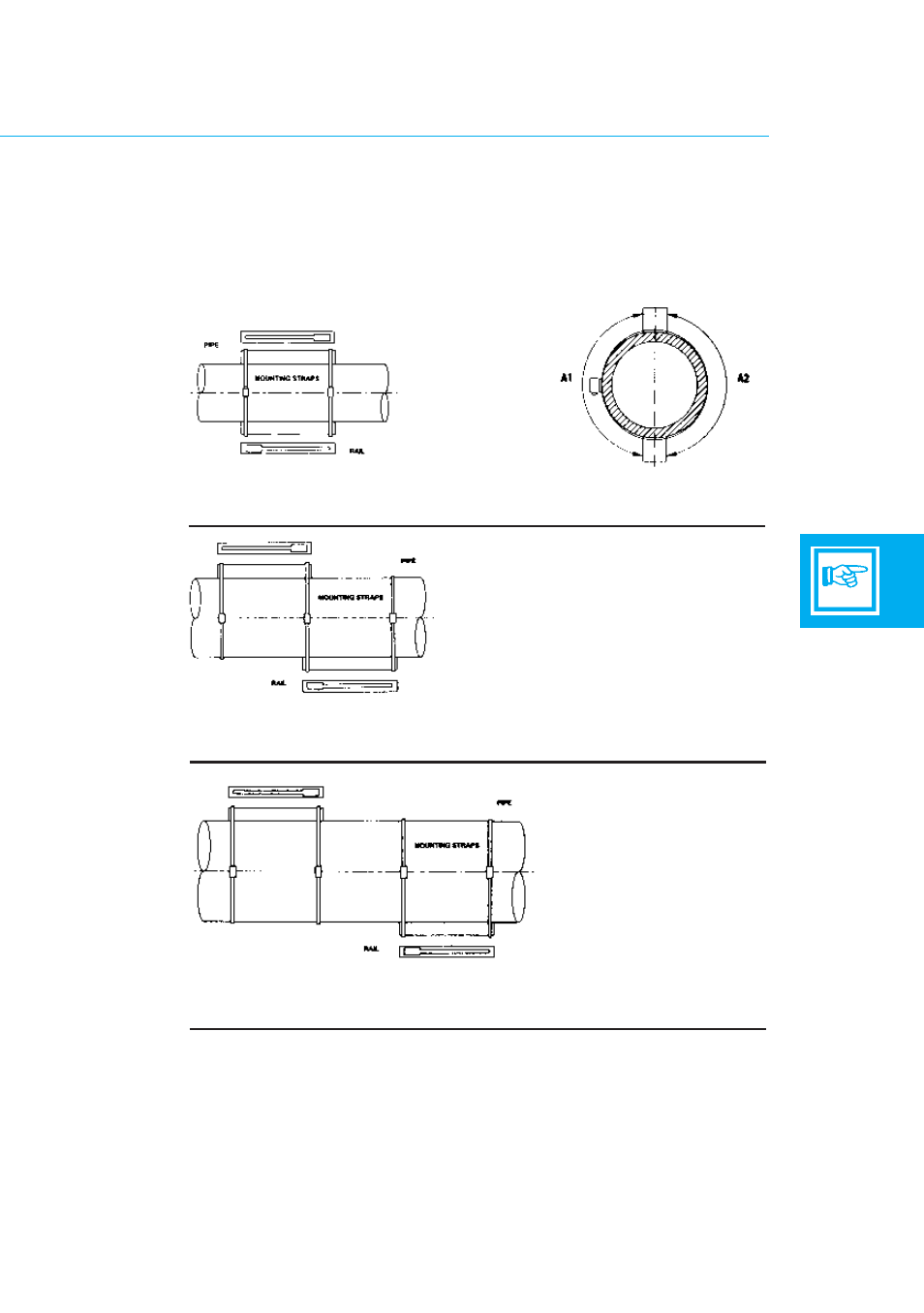

Fig. C.3 : Mounting positions
23
1.
3.
1a.
Mounting position if calculated transducer distance does
not exceed 350 mm (14")
Mounting position if calculated transducer distance is
between 350 mm (14") and 700 mm (28")
2.
Mounting position if calculated transducer distance does
exceed
≥ 700 mm (28")
