OPERATION
33
Tracking Generator Function (Primary RF
Software)
The Primary RF software can be used as a tracking generator for
the GSP-730 to track the frequency response of a DUT.
Note
Please note that the Primary RF software has
multiple functions and can be used for purposes
other than as tracking generator software for the
GSP-730. The other software functions are beyond
the scope of this manual and will not be detailed.
Setup
Description
The following chapter will show how to
connect the USG to the GSP-730 and to the host
PC when using the USG as a tracking
generator. To use the USG as a tracking
generator, the Primary RF software must be
used. See page 20 for installation details.
Connection

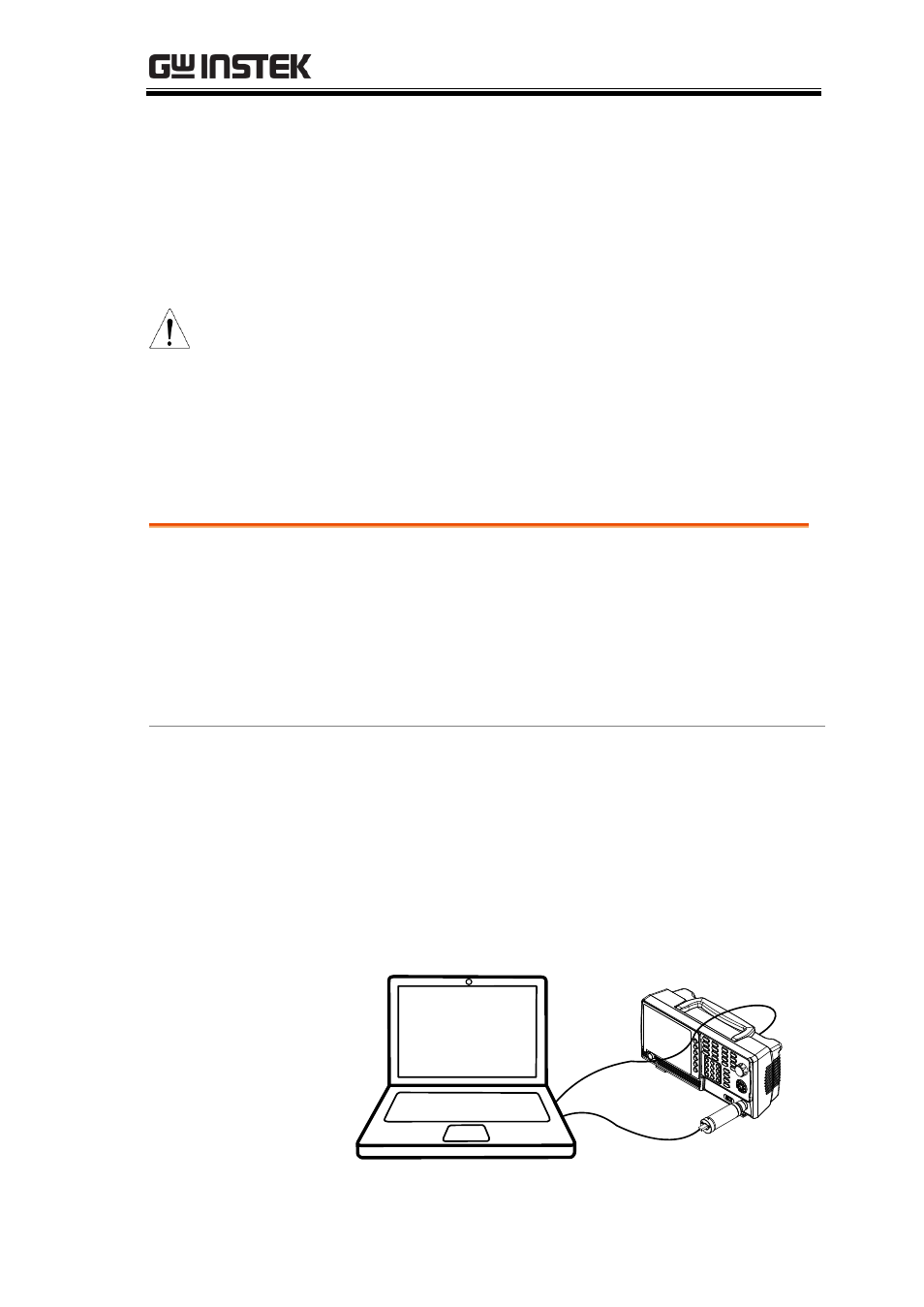

1. Connect the USG to the RF port of the GSP-730.
2. Connect the PC to the USG using a Type A-
mini USB cable.
3. Connect the PC to the rear-panel USB B port on
the GSP-730 using a Type A-Type B USB cable.
