GETTING STARTED

11

Frequency
Settings

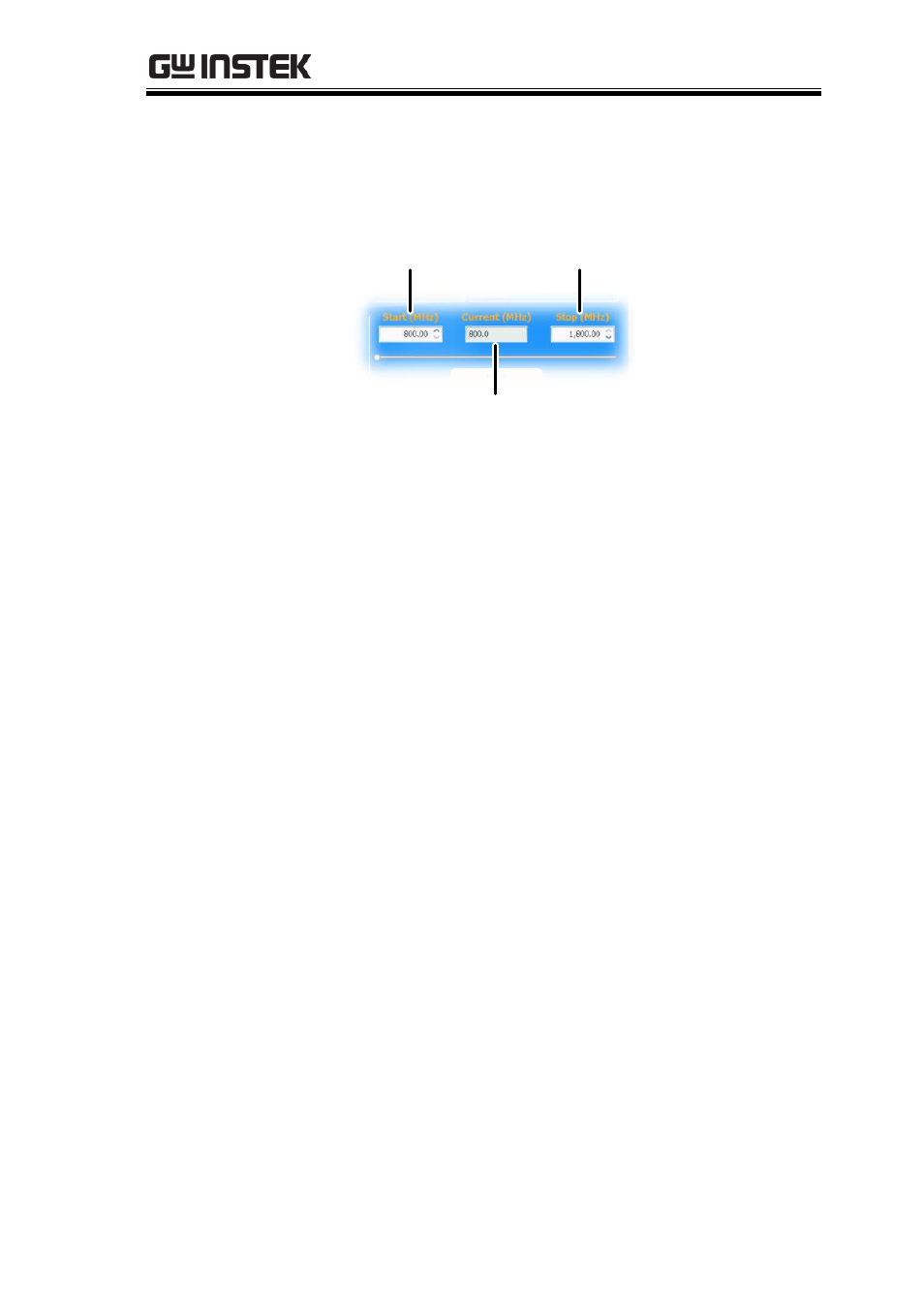

Sets the basic start and stop frequency parameter
settings. It also displays the instantaneous
(current) output frequency, as shown below.

Start frequency

Stop frequency

Current frequency

Frequency Status
Bar

When the output is on, the point on the frequency
status bar indicates the instantaneous frequency
that is being output. When the output is off, the
status bar can set the start and stop frequencies.

Start key

Pressing Start will output the selected function.

System
Information

The system information states the serial number,
model and frequency range specifications.

Frequency Offset
Settings

Offsets the frequency by ±50 kHz.

Time Dwell
Settings

The time dwell settings determine how long the
signal will stay (dwell) at each frequency point.

Step Size

The User Step and Point (inversely related) set the
step resolution of the single and continuous sweep
functions in hertz and number of points,
respectively.
