USG Series User Manual
12

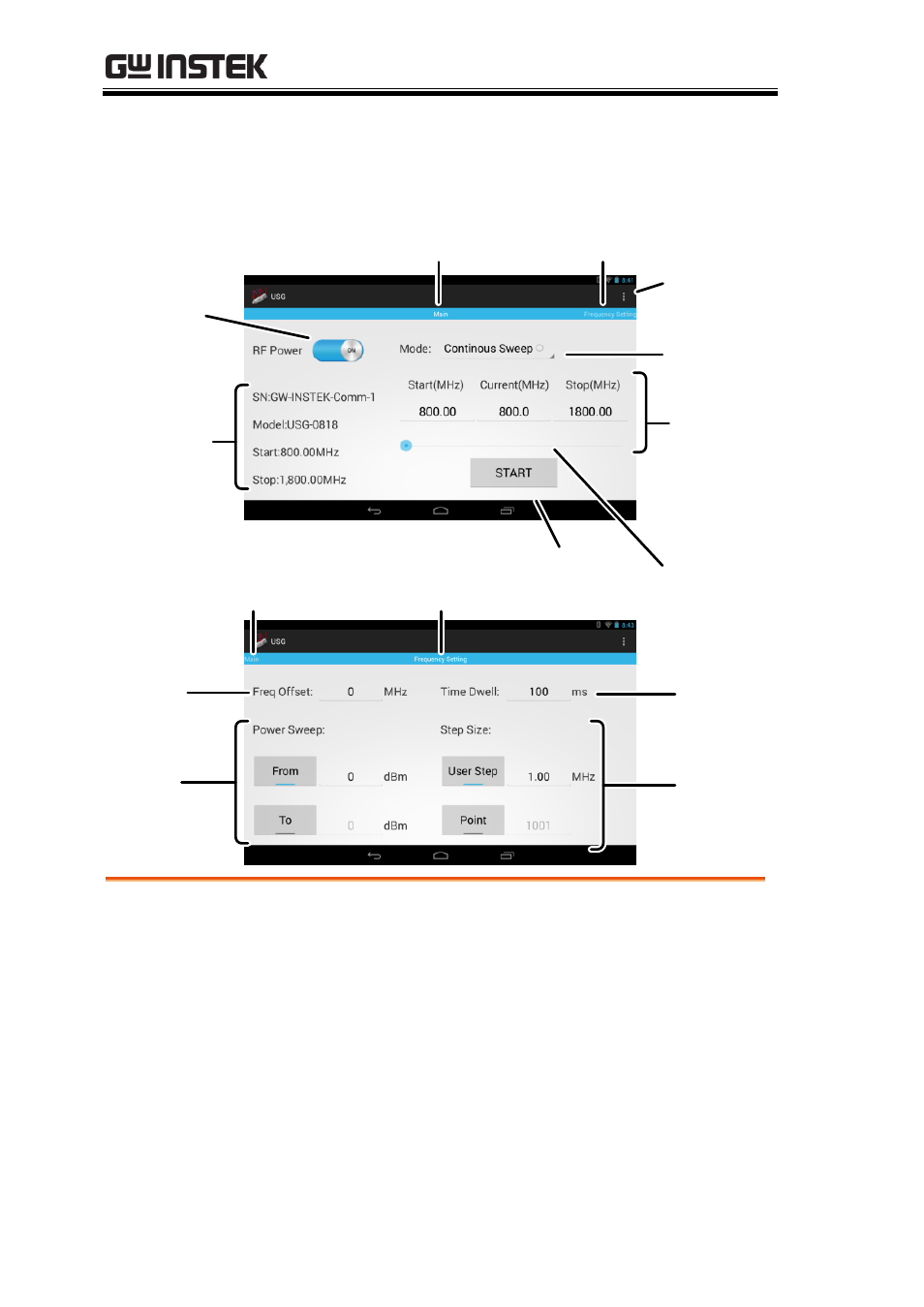

Signal Generator Display – Android App
Power
indicator
Function
settings
Main
panel
Start key
Frequency
range
settings
System
infomation
Frequency
status bar
Frequency
offset
settings
To Frequency
Setting panel
About
To Main panel
Frequency
Setting panel
Time
Dwell
settings
Power
sweep
settings
Step size
settings
Power Indicator Turns the RF output on or off.
System
Information The system information states the serial number,
model and frequency range specifications.
Main panel Indicates that the interface is in the Main panel.
To Frequency
Setting panel Indicates that swiping to the left will go to the
Frequency Setting panel.
