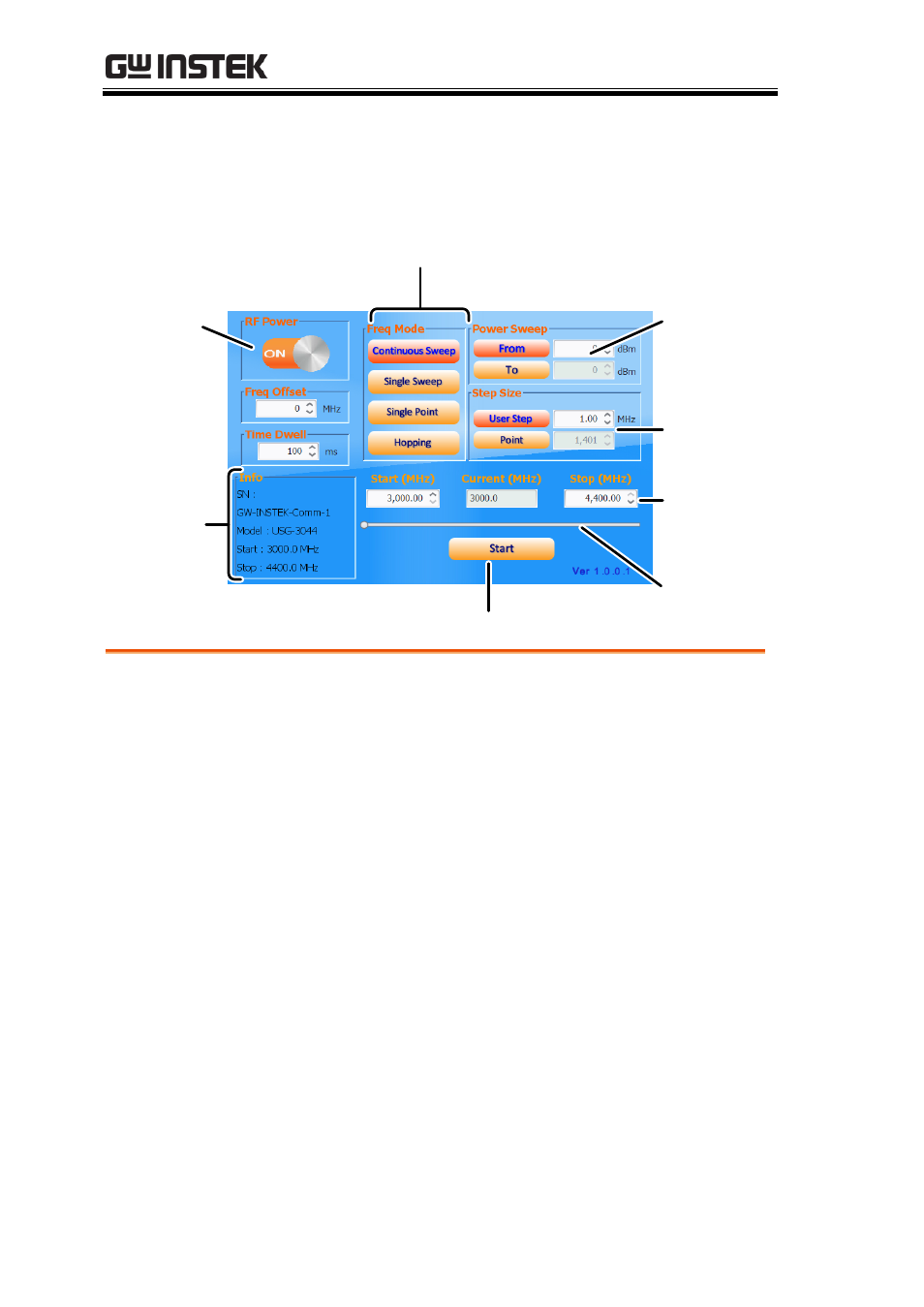

Signal Generator Display - Java
Power
indicator
Power
Sweep
Function
Mode
Start key
Offset and
time dwell
settings
Frequency
settings
System
infomation
Frequency
status bar
Step Size
Power Indicator Turns the RF output on or off.
Function Mode Chooses the type of function to be performed by
the USG: Continuous Sweep, Single Sweep, Single
Point or Hopping
Power Sweep Sets the Start and Stop power level settings. The
From setting set the initial power level at the start
of the sweep and the To setting sets the final power
level at the end of the sweep.
Step Size Sets the sweep step settings
