Selecting the Frequency Step Size

Description

The step size settings determine the number of
frequency points for the sweep modes.

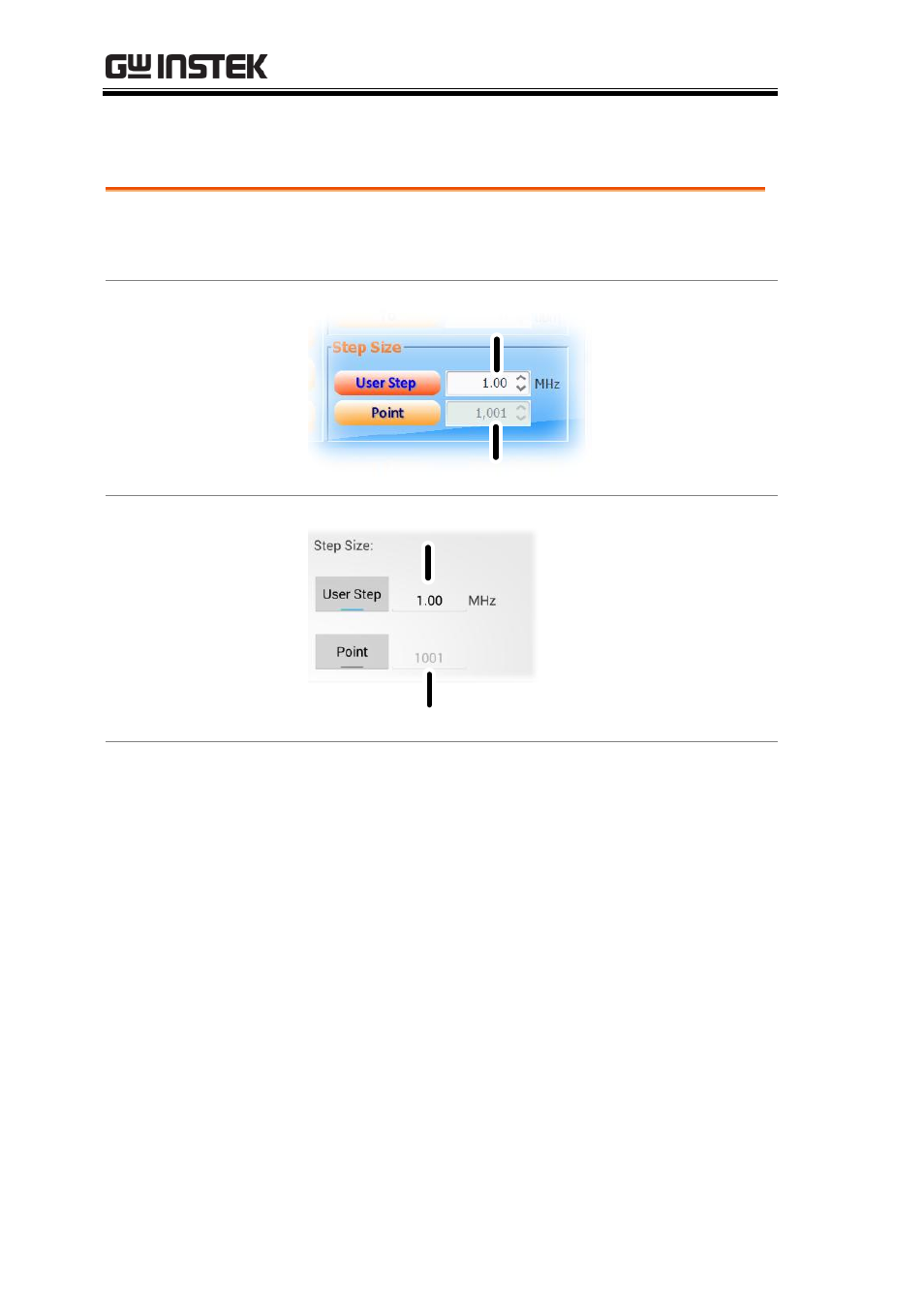

Java App Display

Step size

Number of points

Android App
Display

Step size

Number of points

Steps

1. To set the span of each step of a sweep, press

User Step.

2. To set the number of discrete steps in a sweep,

press Point.

The number or points or the frequency span
of each step depends on the USG model.

User Step range

0.01MHz~ 100 MHz

Point range

(Frequency span of USG
model / User Step
range) + 1 = Point range
