6 Brocade ICX 7750 Hardware Installation Guide
53-1003084-01
1
Supported expansion module

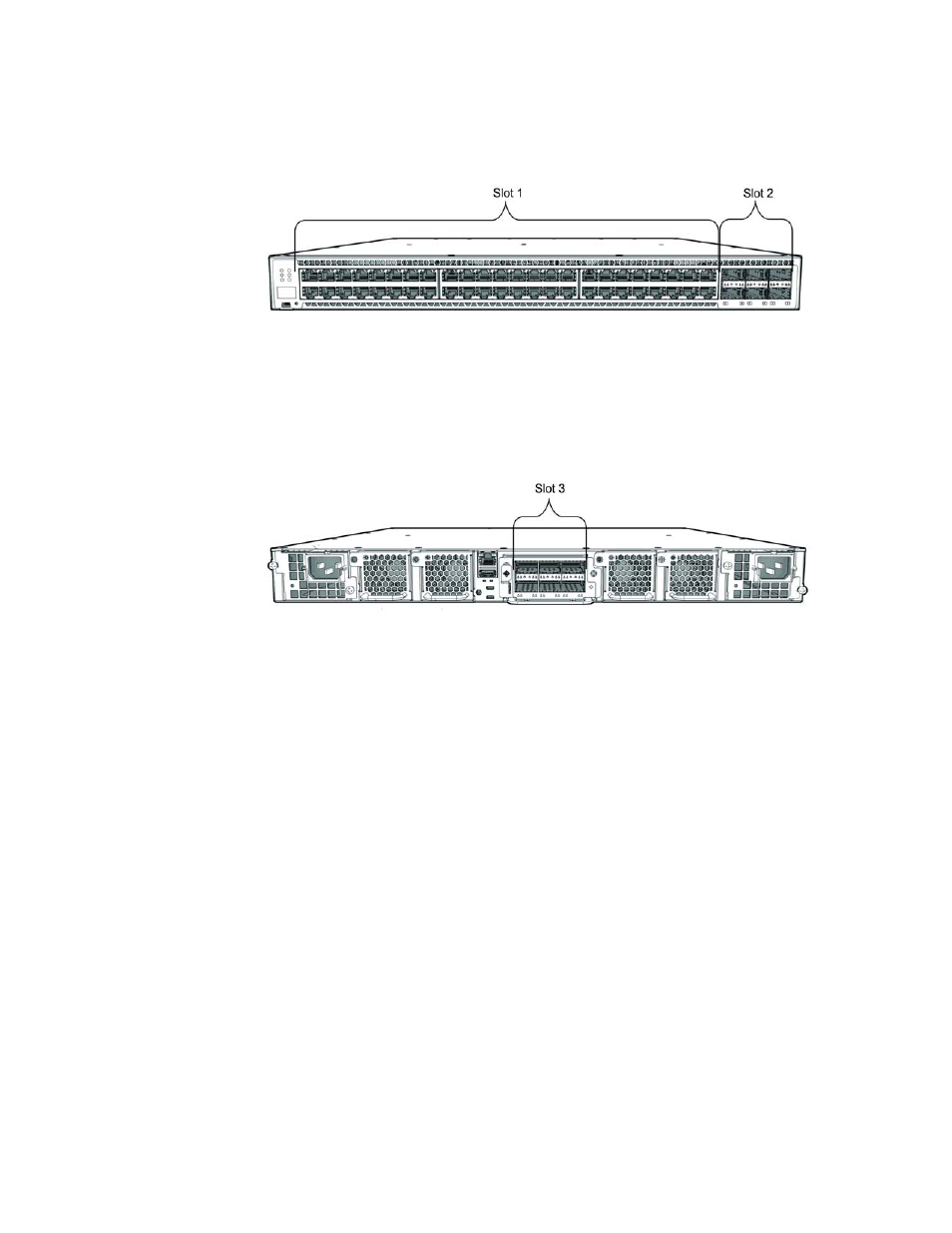

FIGURE 7 Brocade ICX 7750-48C slot numbering
• Slot 3 is located on the rear of the Brocade ICX 7750 switches and contains ports XL3/1,
XL3/3, and XL3/5 on the top row (left to right) and ports XL3/2, XL3/4, and XL3/6 on the
bottom row (left to right). These ports are 10/40 GbE QSFP+ ports. Refer to the following
figure.
FIGURE 8 Brocade ICX 7750 rear slot numbering
Supported expansion module
A 6-port 10/40 GbE QSFP+ expansion module can be purchased and installed in the rear of the
Brocade ICX 7750. The expansion module is hot-swappable and supports a range of 10 GbE and
40 GbE optics (refer to the
Brocade Optics Family Data Sheet ).
