Views of the Brocade ICX 7750 switch

Brocade ICX 7750 Hardware Installation Guide

3

53-1003084-01

1

Views of the Brocade ICX 7750 switch

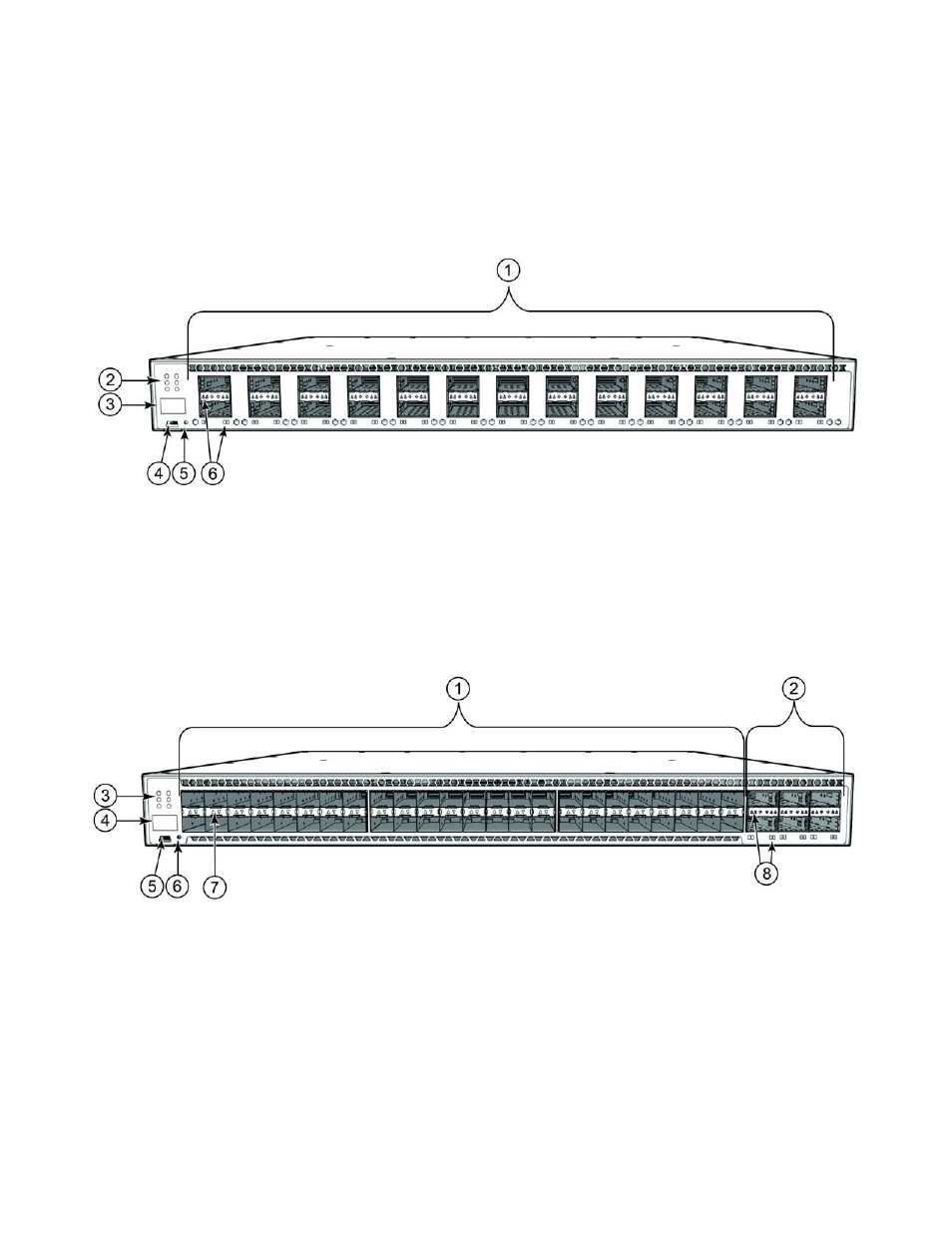

Figure 1

shows the front view of the Brocade ICX 7750-26Q switch.

FIGURE 1

Front view of the Brocade ICX 7750-26Q

Figure 2

shows the front view of the Brocade ICX 7750-48F switch.

FIGURE 2

Front view of the Brocade ICX 7750-48F

1

QSFP+ ports XL1/1 - XL1/20 and XL2/1 - XL2/6

4

Console port

2

System LEDs

5

Reset button

3

Stack unit ID display

6

QSFP+ port LEDs

1

SFP+ ports 1/1 - 1/48

5

Console port

2

QSFP+ ports XL2/1 - XL2/6

6

Reset button

3

System LEDs

7

SFP+ port LEDs

4

Stack unit ID display

8

QSFP+ port LEDs
