Brocade ICX 7750 slot and Ethernet port numbering
Brocade ICX 7750 Hardware Installation Guide 5
53-1003084-01
1
Brocade ICX 7750 slot and Ethernet port numbering
Many CLI commands require users to enter port numbers as part of the command syntax, and
many show command outputs display port numbers. The port numbers are entered and displayed
in stack-unit/slot number/port number format.
The Brocade ICX 7750 contains the following slots and Ethernet ports:
• Slot 1 and Slot 2 are located on the front of the Brocade ICX 7750-26Q device. Slot 1 contains
10/40 GbE QSFP+ ports XL1/1 through XL1/20; odd port numbers on the top row with port
XL1/1 on the left and port XL1/19 on the right. Slot 2 contains 10/40 GbE QSFP+ ports XL2/1
through XL2/6; ports XL2/1, XL2/3, and XL2/5 are on the top row (left to right), and ports
XL2/2, XL2/4, and XL2/6 are on the bottom row (left to right). Refer to the following figure.

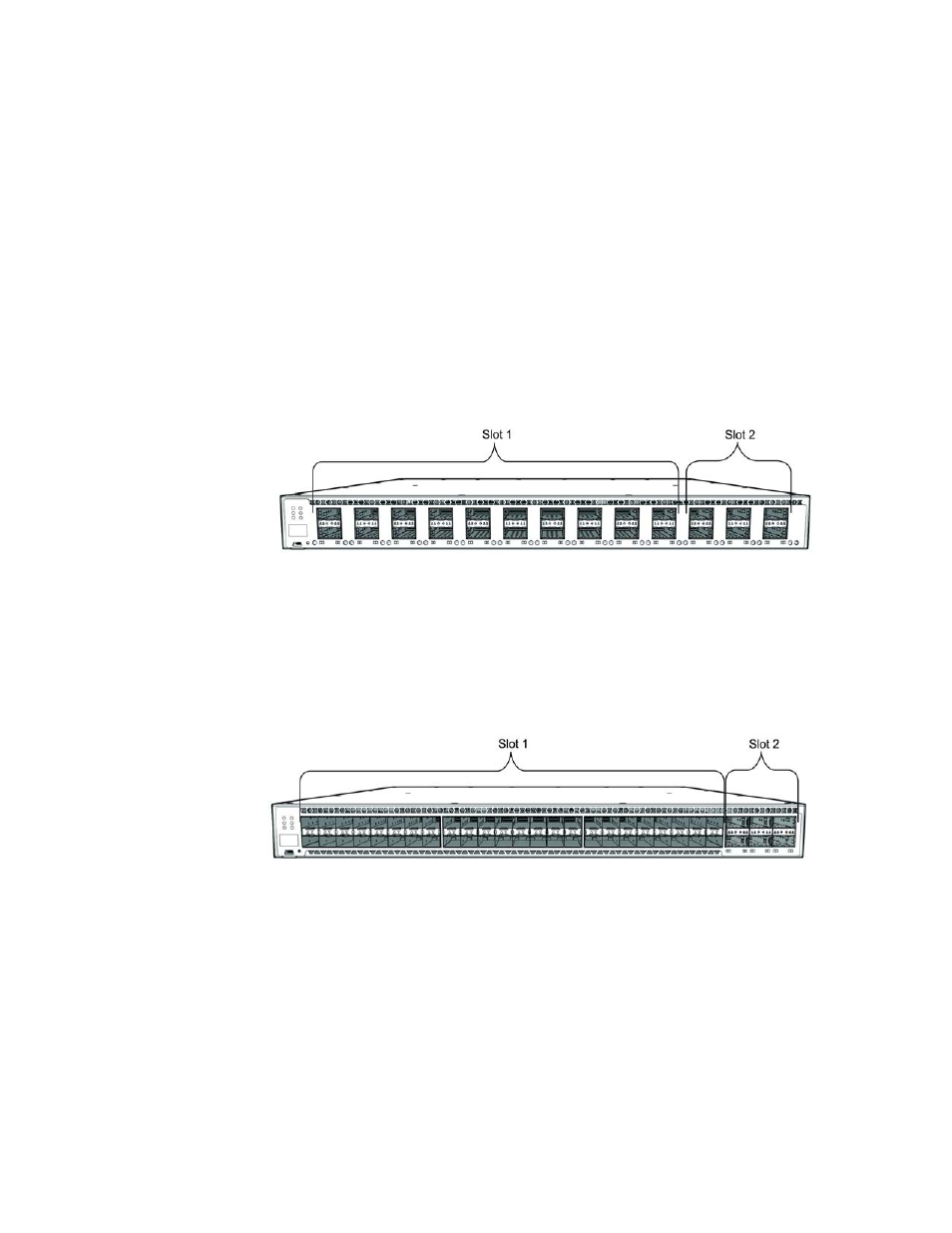

FIGURE 5 Brocade ICX 7750-26Q slot numbering
• Slot 1 and Slot 2 are located on the front of the Brocade ICX 7750-48F device. Slot 1 contains
1/10 GbE SFP+ ports 1/1 through 1/48, with odd port numbers on the top row and port 1/1
on the left. Slot 2 contains 10/40 GbE QSFP+ ports XL2/1, XL2/3, and XL2/5 on the top row
(left to right), and ports XL2/2, XL2/4, and XL2/6 on the bottom row (left to right). Refer to the
following figure.
FIGURE 6 Brocade ICX 7750-48F slot numbering
• Slot 1 and Slot 2 are located on the front of the Brocade ICX 7750-48C device. Slot 1 contains
1/10 GbE RJ-45 ports 1/1 through 1/48, with odd port numbers on the top row and port 1/1
on the left. Slot 2 contains 10/40 GbE QSFP+ ports XL2/1, XL2/3, and XL2/5 on the top row
(left to right), and ports XL2/2, XL2/4, and XL2/6 on the bottom row (left to right). Refer to the
following figure.
