AFL2-W15A-N270/L325 Panel PC
Page 48

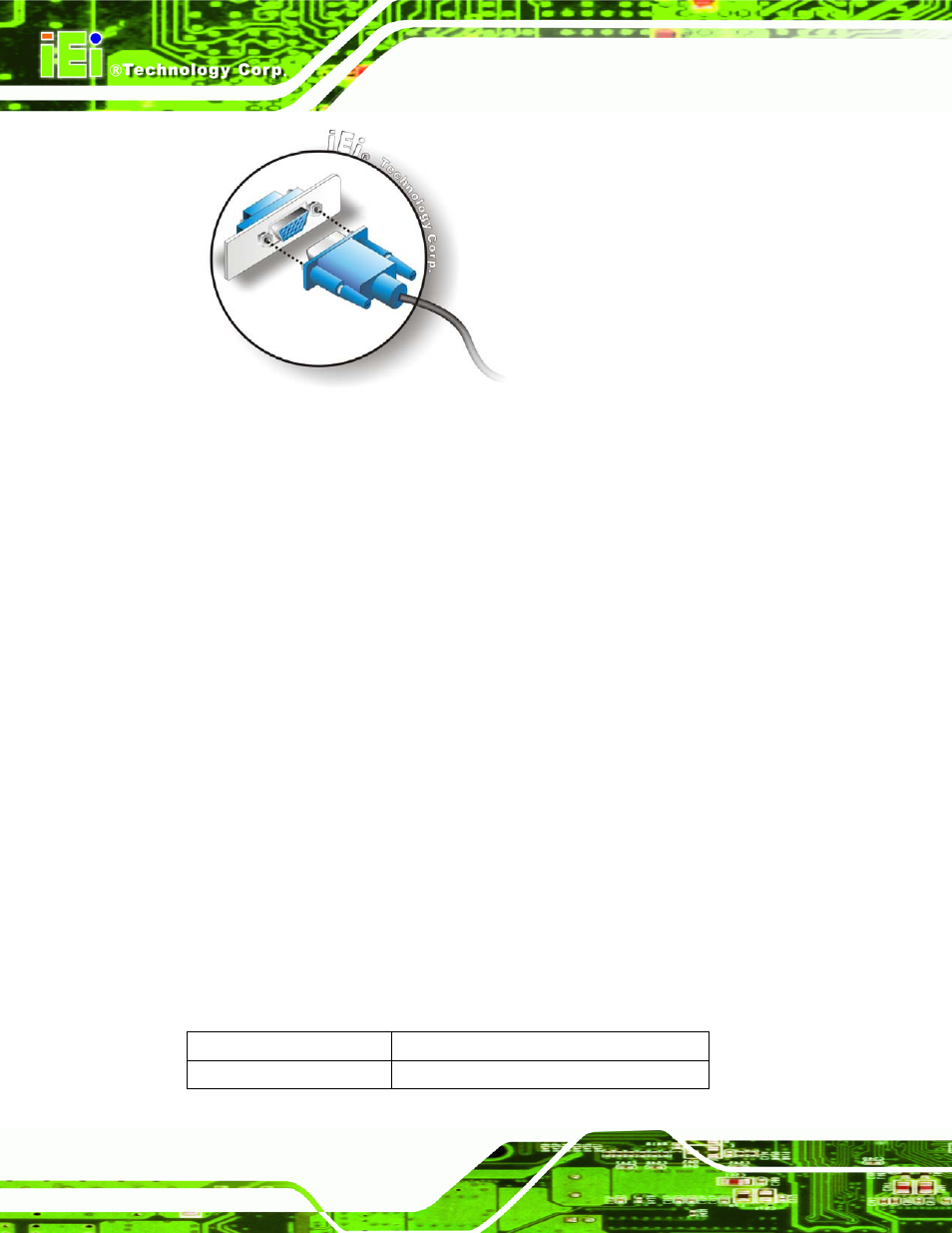

Figure 2-30: VGA Connector
Step 4: Secure the connector . Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
2.10 Power Connection
The power cable connects the panel PC to the power supply. The power cable is required
for operation of the panel PC.
Step 1: Connect one end to the panel PC.
Step 2: Connect the other end to the included power supply Step 0:
2.11 RFID Reader Specs and Setup (Optional)
Some of the AFL2-W15A-N270/L325 models include RFID reader. There are two types of
RFID modules and the specifications of the RFID modules are listed below.
2.11.1 RFID Module for EM Models
Table 2-15 lists the specifications of the RFID module installed in the
AFL2-W15A-N270/L325 EM models.
Model RF222
Power Requirements 5VDC+/-5% at 55 mA typical
