AFL2-W15A-N270/L325 Panel PC

Page 16

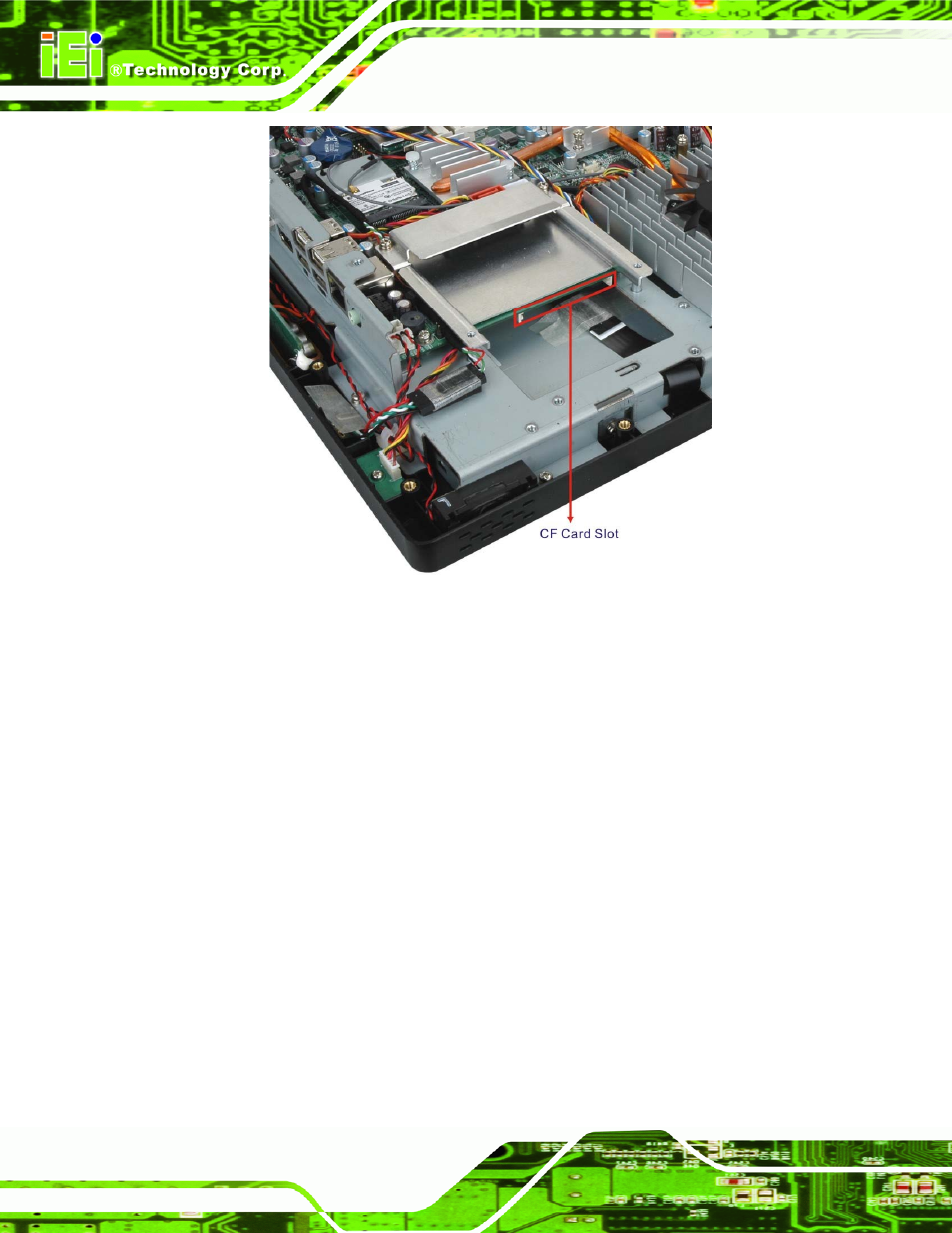

Figure 2–4: CompactFlash® Slot Location (shown with all covers removed)

Step 3:

Install the CompactFlash® card into the slot (see figure below).
