2.6 USB Dongle Installation (AFL2-W15A-N270 only)

The installation for an USB dongle is described in this section.

Step 1:

Remove the access panel and brackets as described in the HDD installation

instructions.

Step 2:

Locate the USB dongle connector and install the USB dongle as shown below.

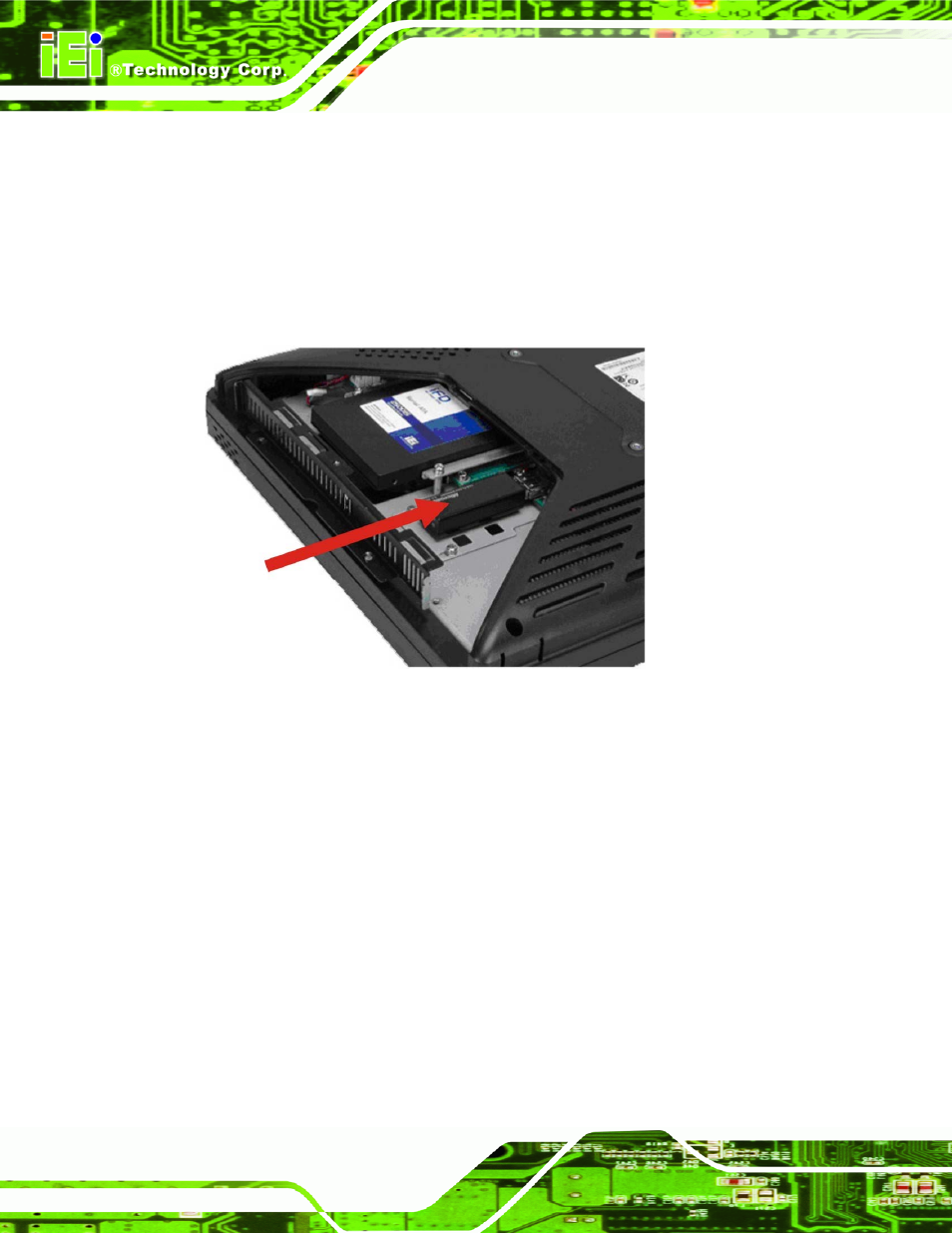

Figure 2-8: USB Dongle Installation

Step 3:

Replace the bracket, access panel and screws.
