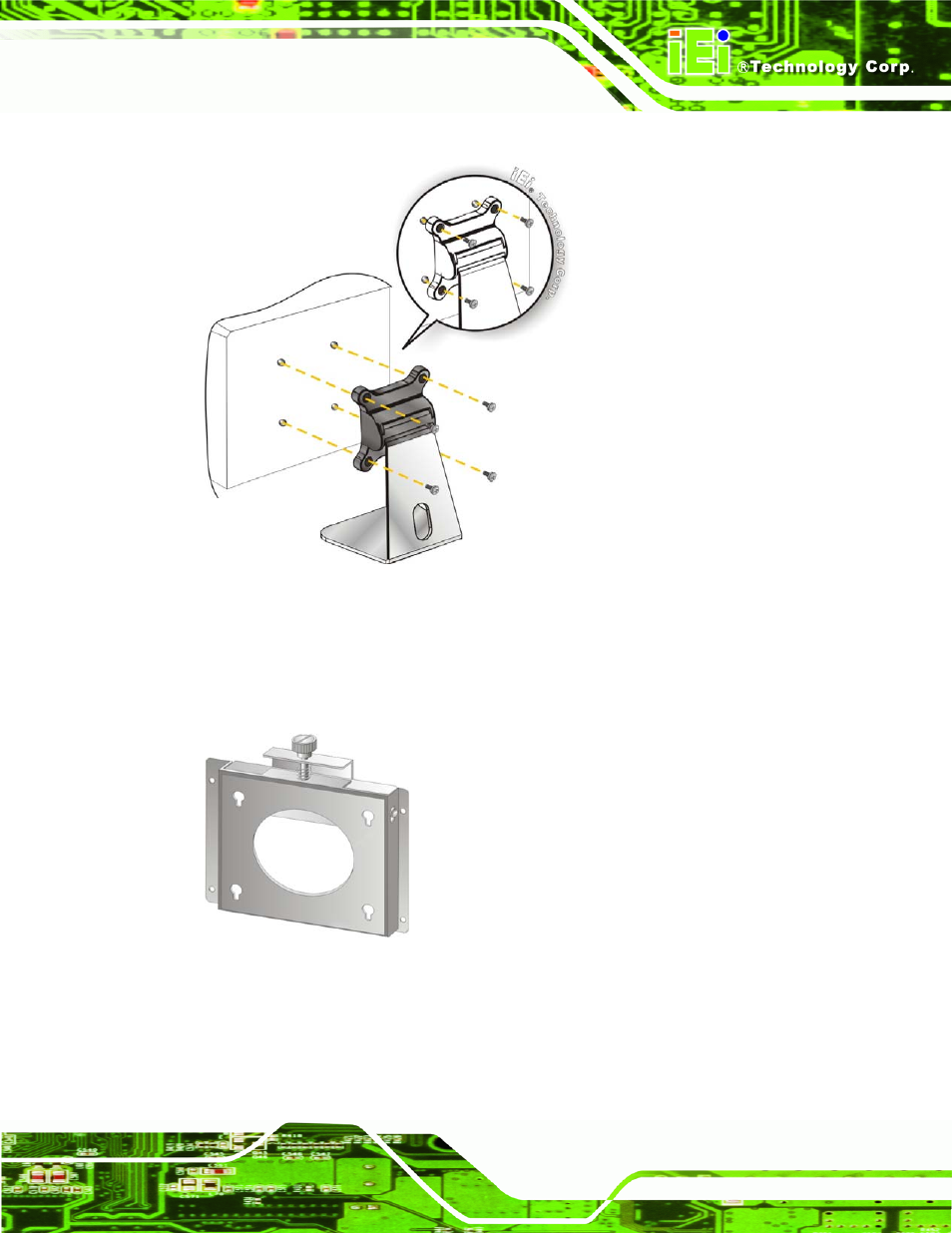

Figure 2-20: Stand Mounting (Stand-A19)

2.8.4 Wall Mounting

To mount the flat panel PC onto the wall, please follow the steps below.

Figure 2-21: Wall Mount

Step 1:

Select the location on the wall for the wall-mounting bracket.

Step 2:

Carefully mark the locations of the four brackets screw holes on the wall.
