2.9.2 Serial Device Connection
The serial device connectors are for connecting serial devices to the
AFL2-W15A-N270/L325. Follow the steps below to connect a serial device to the
AFL2-W15A-N270/L325 panel PC.
Step 1: Locate the DB-9 connector . The location of the DB-9 connector is shown in
Chapter 2 .
Step 2: Insert the serial connector . Insert the DB-9 connector of a serial device into
the DB-9 connector on the bottom panel. See Figure 2-28.

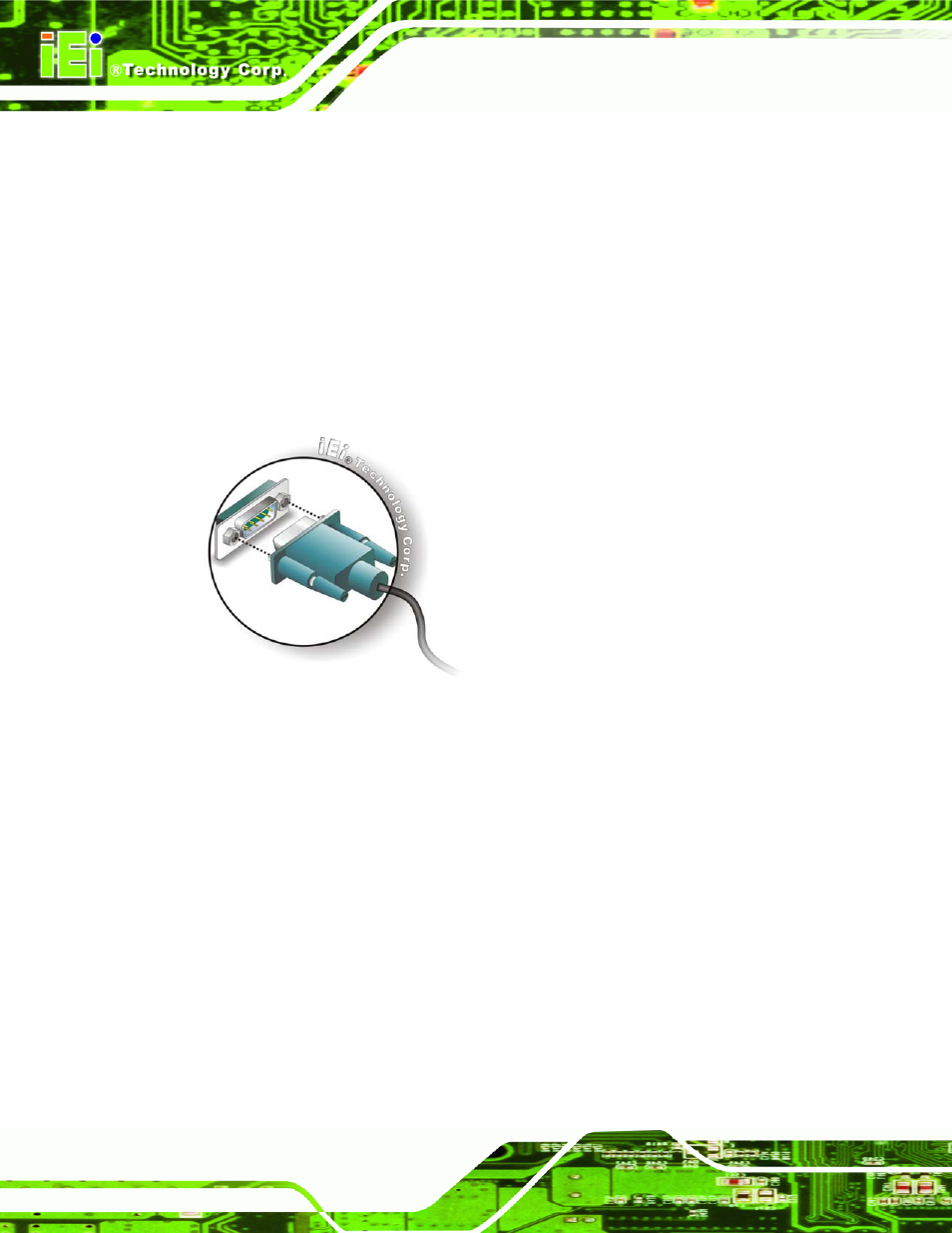

Figure 2-28: Serial Device Connector
Step 3: Secure the connector . Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
2.9.3 USB Device Connection
To connect USB devices to the AFL2-W15A-N270/L325, please follow the instructions
below.
Step 1: Located the USB connectors . The locations of the USB connectors are shown
in Chapter 2.
Step 2: Align the connectors. Align the USB device connector with one of the
connectors on the bottom panel. See Figure 2-29.
