AFL2-W15A-N270/L325 Panel PC
Page 100

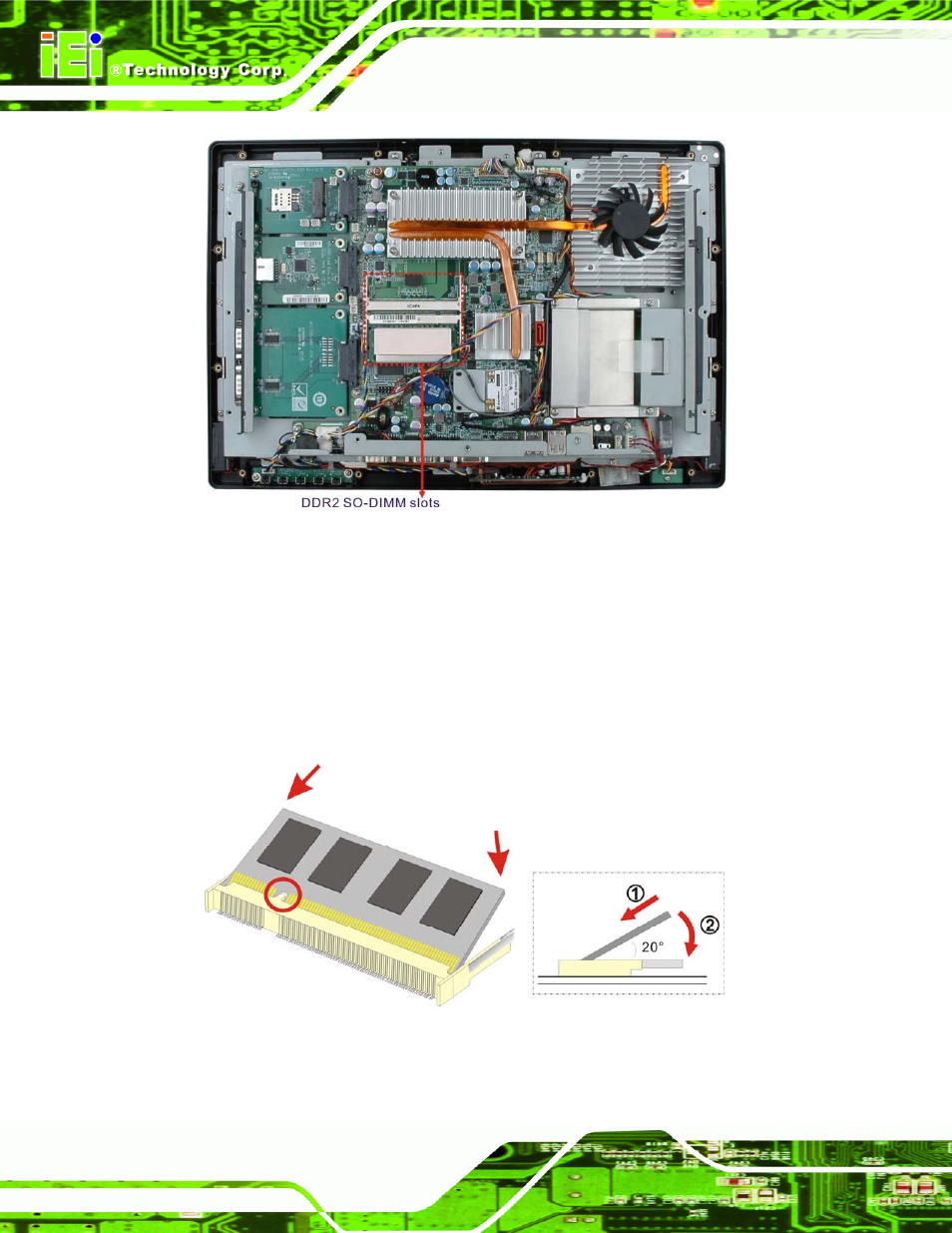

Figure 4-2: AFL2-W15A-L325 SO-DIMM Slots (shown with all covers removed)
Step 3: Remove the memory module by pulling both the spring retainer clips outward
from the socket.
Step 4: Grasp the memory module by the edges and carefully pull it out of the socket.
Step 5: Install the new memory module by inserting it at an angle, then pushing down
until the clips snap into place (Figure 4-3). Step 0:
Figure 4-3: DDR SO-DIMM Module Installation
