AFL2-W15A-N270/L325 Panel PC

Page 25

AFL2-W15A-N270

AFL2-W15A-L325

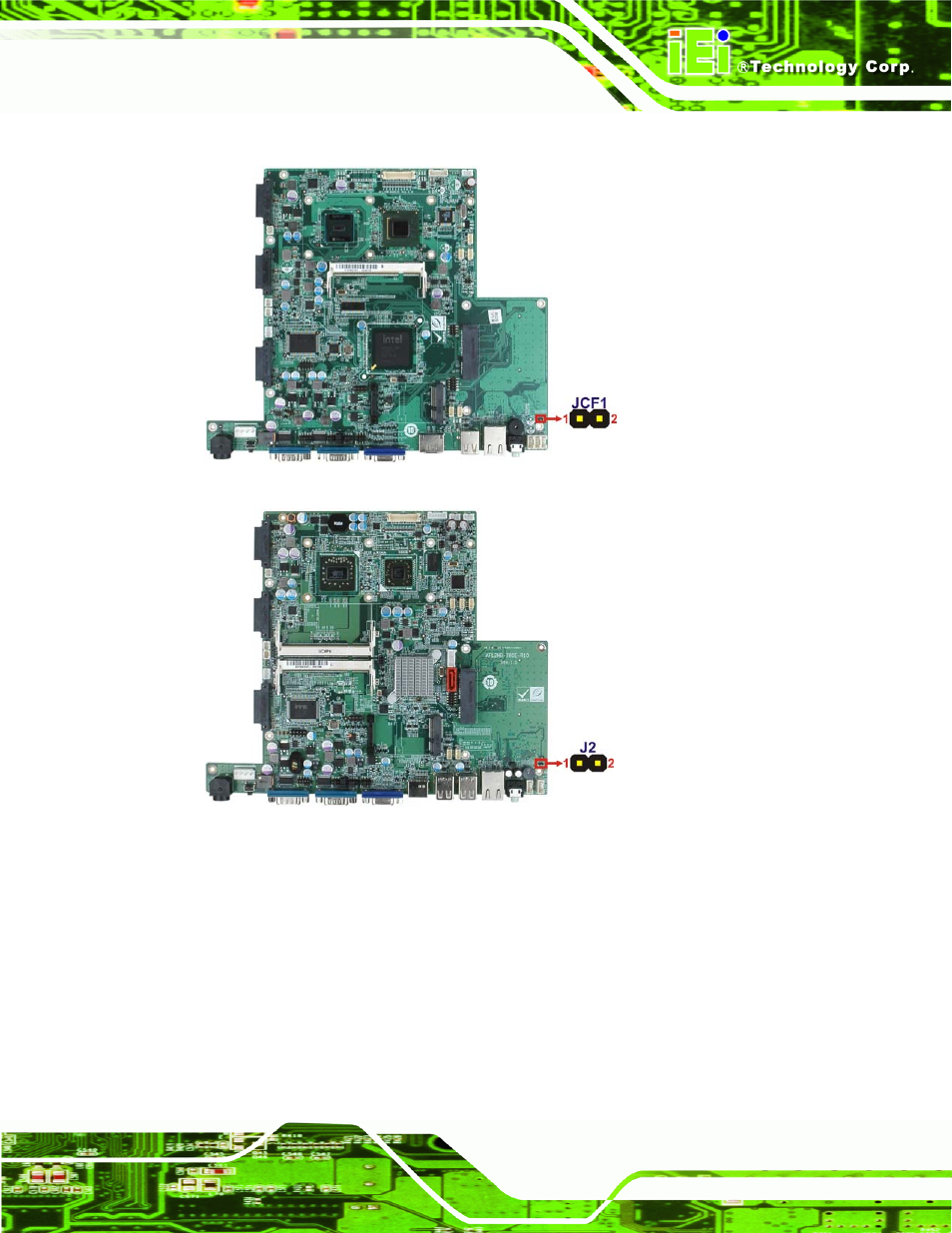

Figure 2-9: CF Card Setup Jumper Location

2.7.3 Clear CMOS Jumper

Jumper Label:

J_CMOS1

Jumper Type:

3-pin header

Jumper Settings:

See Table 2-7

Jumper Location:

See Figure 2-10
