AFL2-W15A-N270/L325 Panel PC
Page 15
Step 3: Insert the SATA connector end of the HDD into the bracket to connect the
motherboard SATA connector to the hard drive SATA connector as shown in the
figure below.

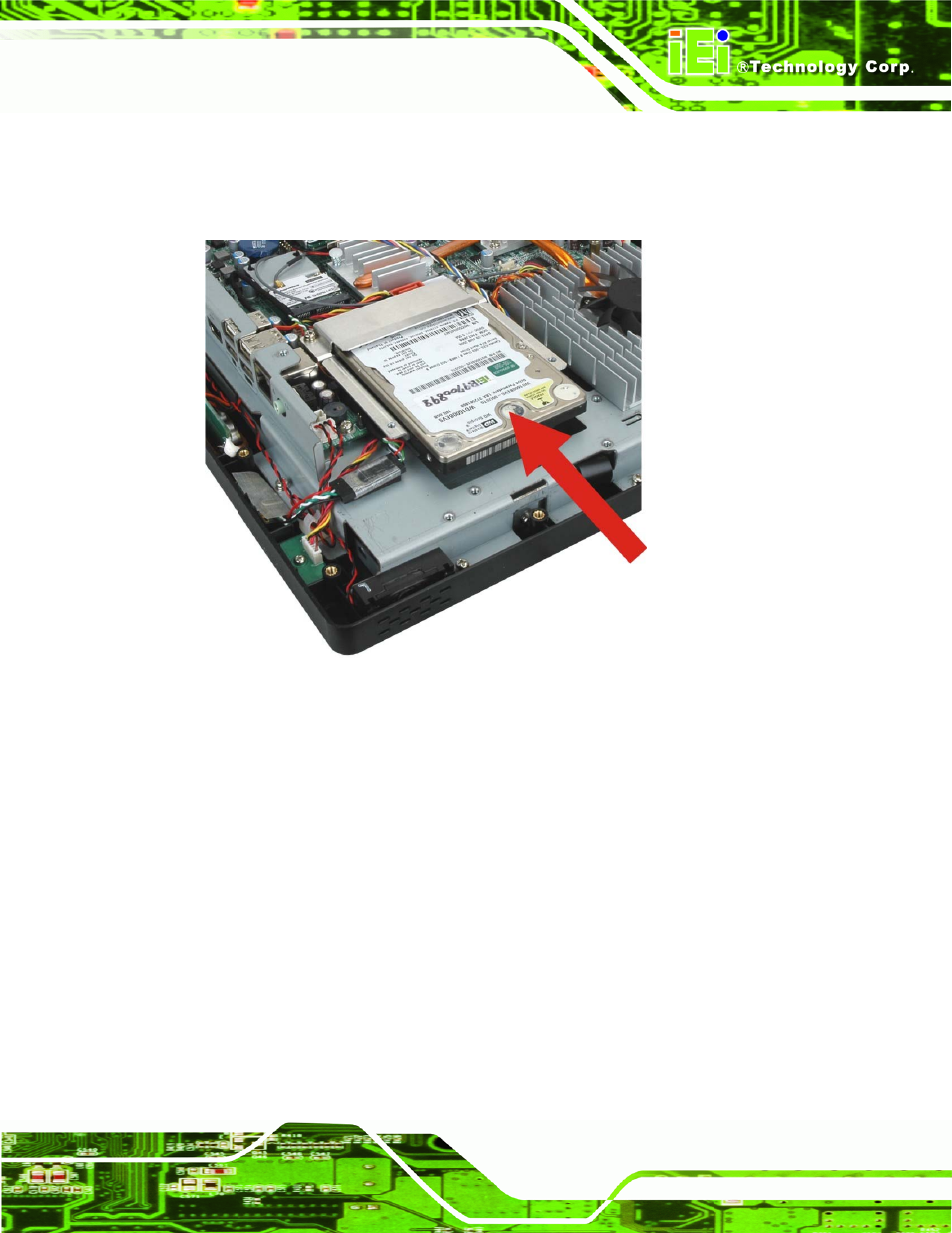

Figure 2–3: HDD Installation (shown with all covers removed)
Step 4: Replace the brackets, covers and screws. S te p 0 :
2.4 CompactFlash® Installation
The installation for a CompactFlash® card is described in this section.
2.4.1 CompactFlash® Installation
Step 1: Remove the access panel and brackets as described in the HDD installation
instructions.
Step 2: Locate the CompactFlash® slot as shown in the figure below.
