AFL2-W15A-N270/L325 Panel PC

Page 4

1.4 External Overview

The AFL2-W15A-N270/L325 consists of a screen and rear panel that covers the back,

sides and top. The rear panel contains a smaller access panel, all the cable connections

and the mounting holes.

1.4.1 Front Panel

The front side of the AFL2-W15A-N270/L325 is a flat panel LCD screen surrounded by a

plastic frame.

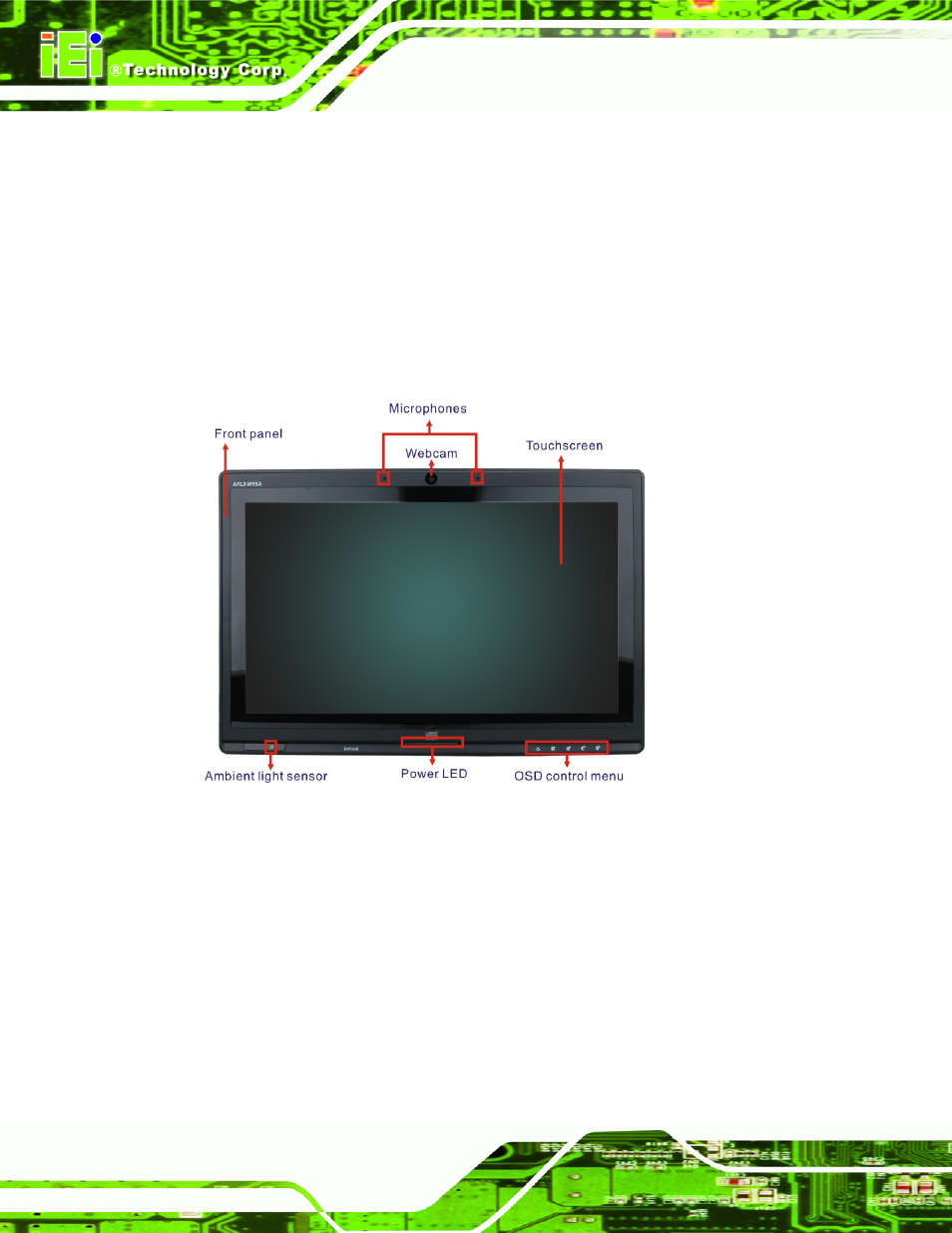

Figure 1-2: Front Panel

1.4.2 Rear Panel

The rear panel provides access to retention screw holes that support the wall mounting.

Refer to Figure 1-3.
