AFL2-W15A-N270/L325 Panel PC

Page 17

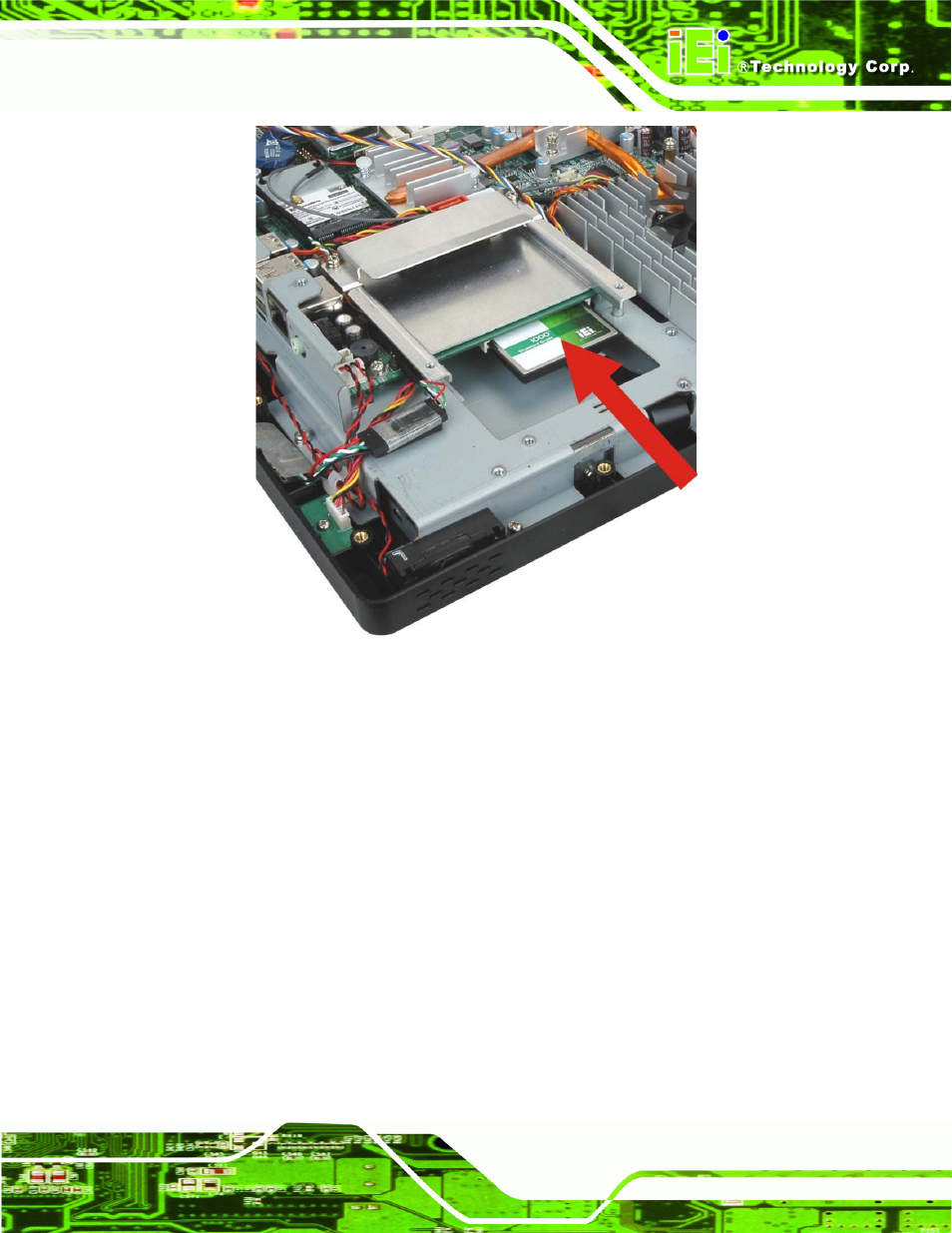

Figure 2–5: CompactFlash® Install (shown with all covers removed)

Step 4:

Replace the brackets, access panel and screws.

S

te

p

0

:

2.5 Expansion Module Installation

This section outlines the installation of the expansion modules in the

AFL2-W15A-N270/L325. To install the modules, please follow the steps below:

Step 1:

Unfasten the left plastic side access panel (Expansion module access panel)

retention screws and remove the left plastic side access panel (See figure

below

).
