AFL2-W15A-N270/L325 Panel PC

Page 37

Step 2:

Once the mounting arm has been firmly attached to its surface, lift the

AFL2-W15A-N270/L325 onto the interface pad of the mounting arm.

Step 3:

Align the retention screw holes on the mounting arm interface with those in the

AFL2-W15A-N270/L325. The AFL2-W15A-N270/L325 arm mount retention

screw holes are shown in Figure 2-16.

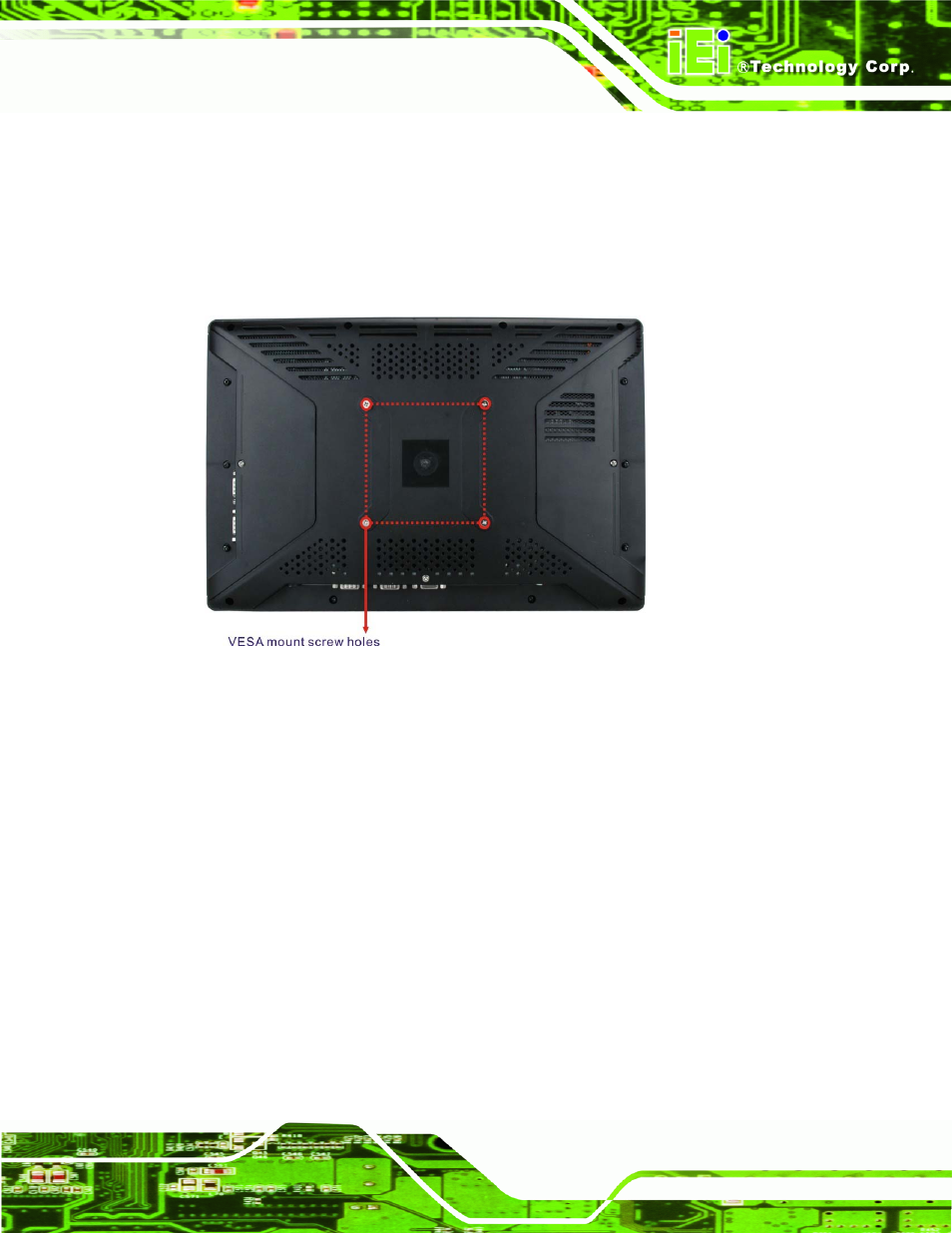

Figure 2-16: Arm Mount Retention Screw Holes

Step 4:

Secure the AFL2-W15A-N270/L325 to the interface pad by inserting four

retention screws through the mounting arm interface pad and into the

AFL2-W15A-N270/L325.
