AFL2-W15A-N270/L325 Panel PC
Page 6

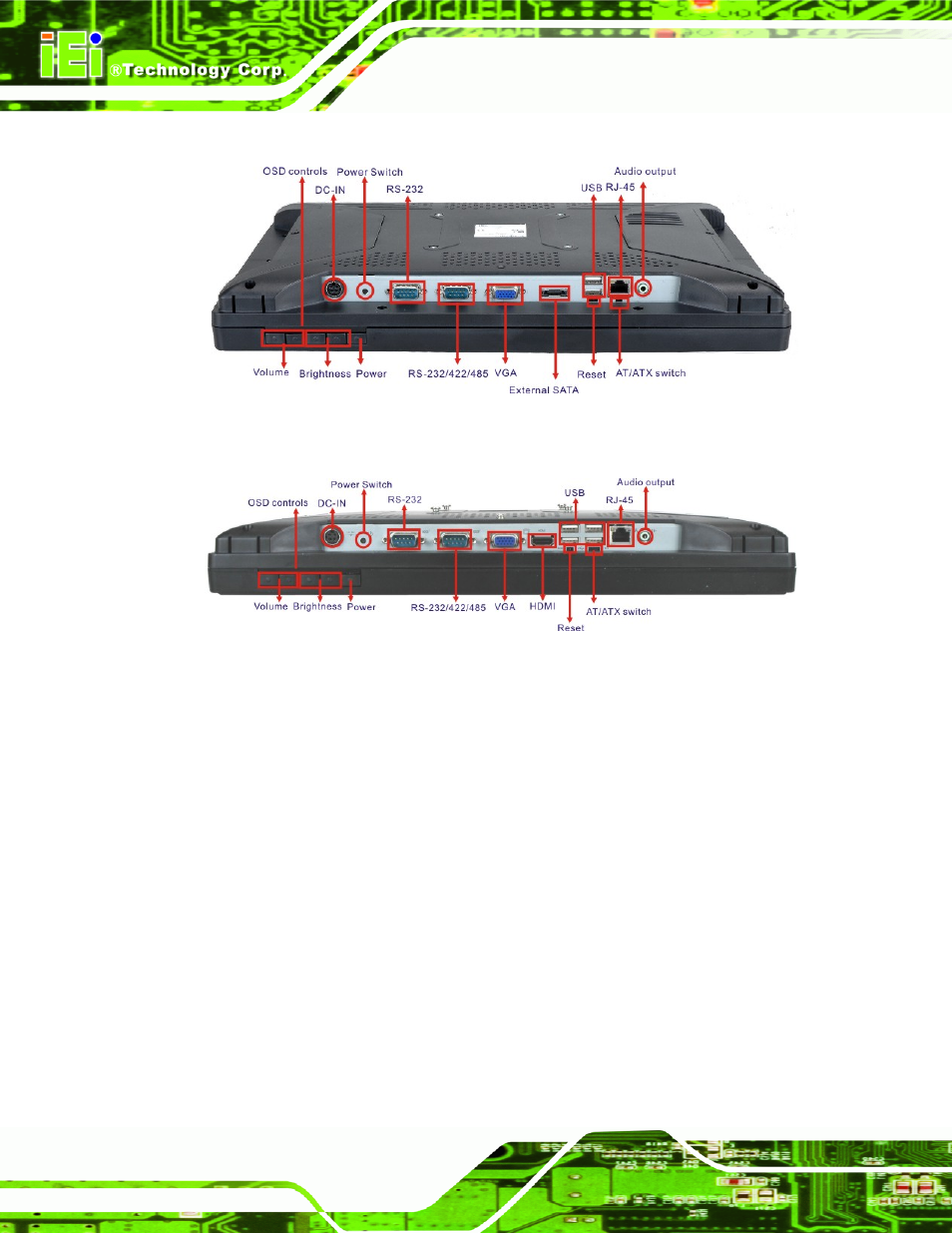

Figure 1-4: AFL2-W15A-N270 Bottom Panel
Figure 1-5: AFL2-W15A-L325 Bottom Panel
1.5 Internal Overview
All the components are contained under the rear panel. The internal components include
the touch panel module and the motherboard. The motherboard has memory, a wireless
module, a SATA hard drive bay, and three expansion interfaces. Optionally, an HSDPA
module can be installed in any of the models.
