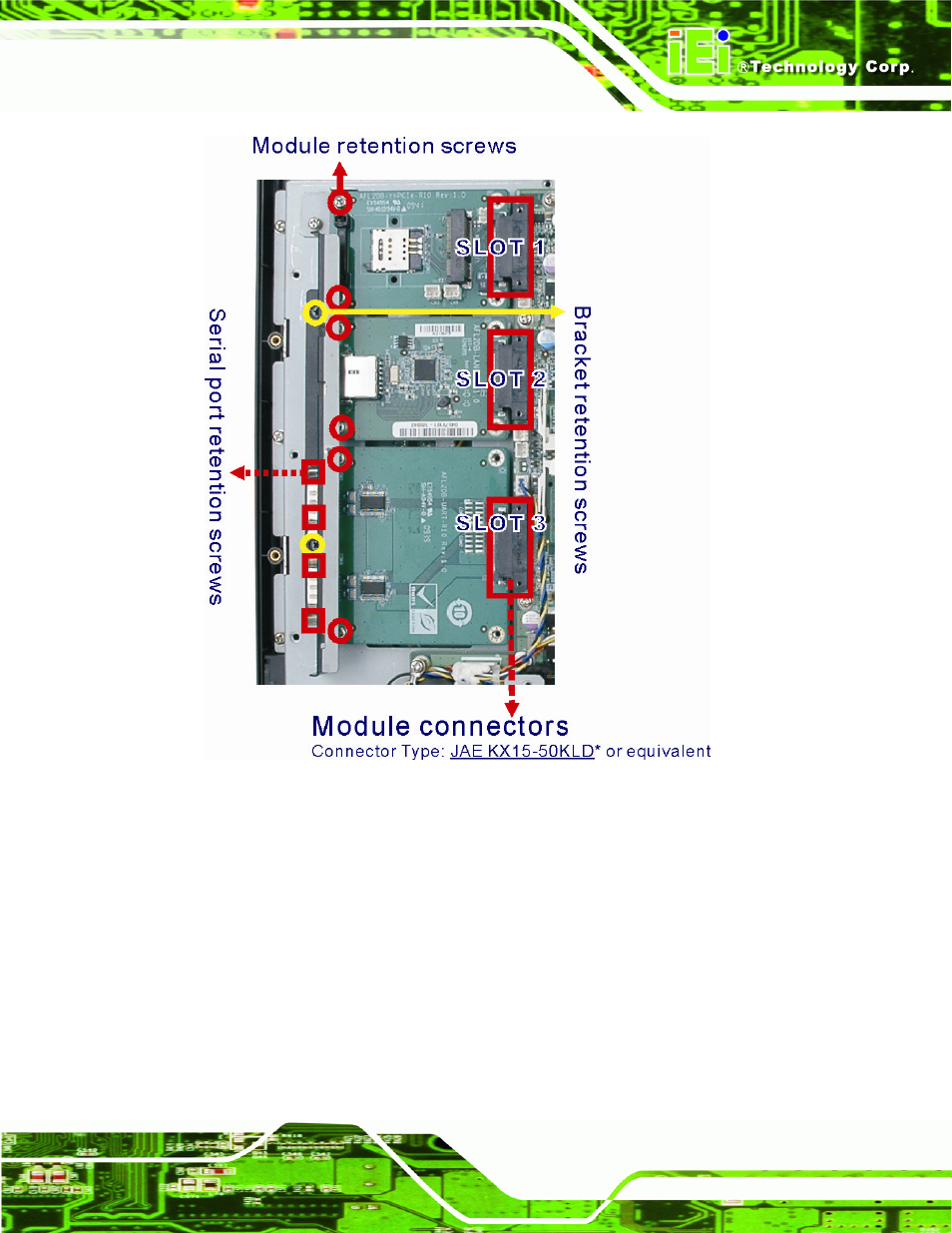

Figure 2-7: Expansion module installation (shown with all covers removed)

Step 3:

Insert the expansion module connector end of the expansion module into the

motherboard module connector to connect the module (See above).

Step 4:

Fasten the expansion module retention screws.

Step 5:

Replace the brackets, cover and screws.
