WAFER-945GSE 3.5” Motherboard

Page 79

4-COM port kit

5.7.2 SATA Drive Connection

The WAFER-945GSE is shipped with two SATA drive cables and one SATA drive power

cable. To connect the SATA drives to the connectors, please follow the steps below.

Step 1:

Locate the connectors. The locations of the SATA drive connectors are shown

in Chapter 3.

Step 2:

Insert the cable connector. Press the clip on the connector at the end of the

SATA cable and insert the cable connector into the onboard SATA drive

connector. See

852H807H

Figure 5-10.

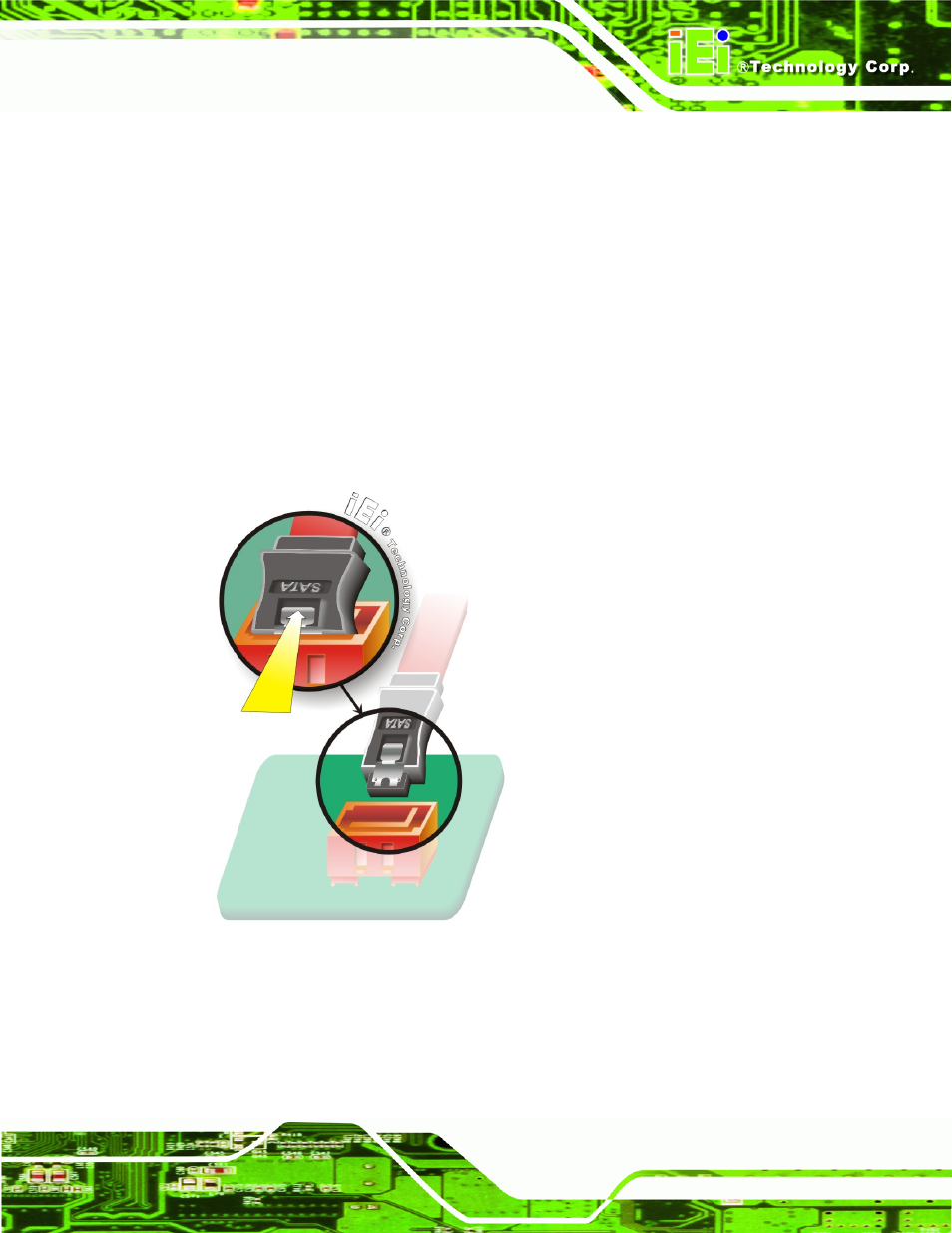

Figure 5-10: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See

853H808H

Figure 5-11.
