WAFER-945GSE 3.5” Motherboard
Page 49
4.3.11 PCIe Mini Card Slot
CN Label: CN4
CN Type: 52-pin Mini PCIe Card Slot
CN Location: See
791H751H
Figure 4-12
CN Pinouts: See
752H
Table 4-13
The PCIe mini card slot enables a PCIe mini card expansion module to be connected to
the board. Cards supported include among others wireless LAN (WLAN) cards.

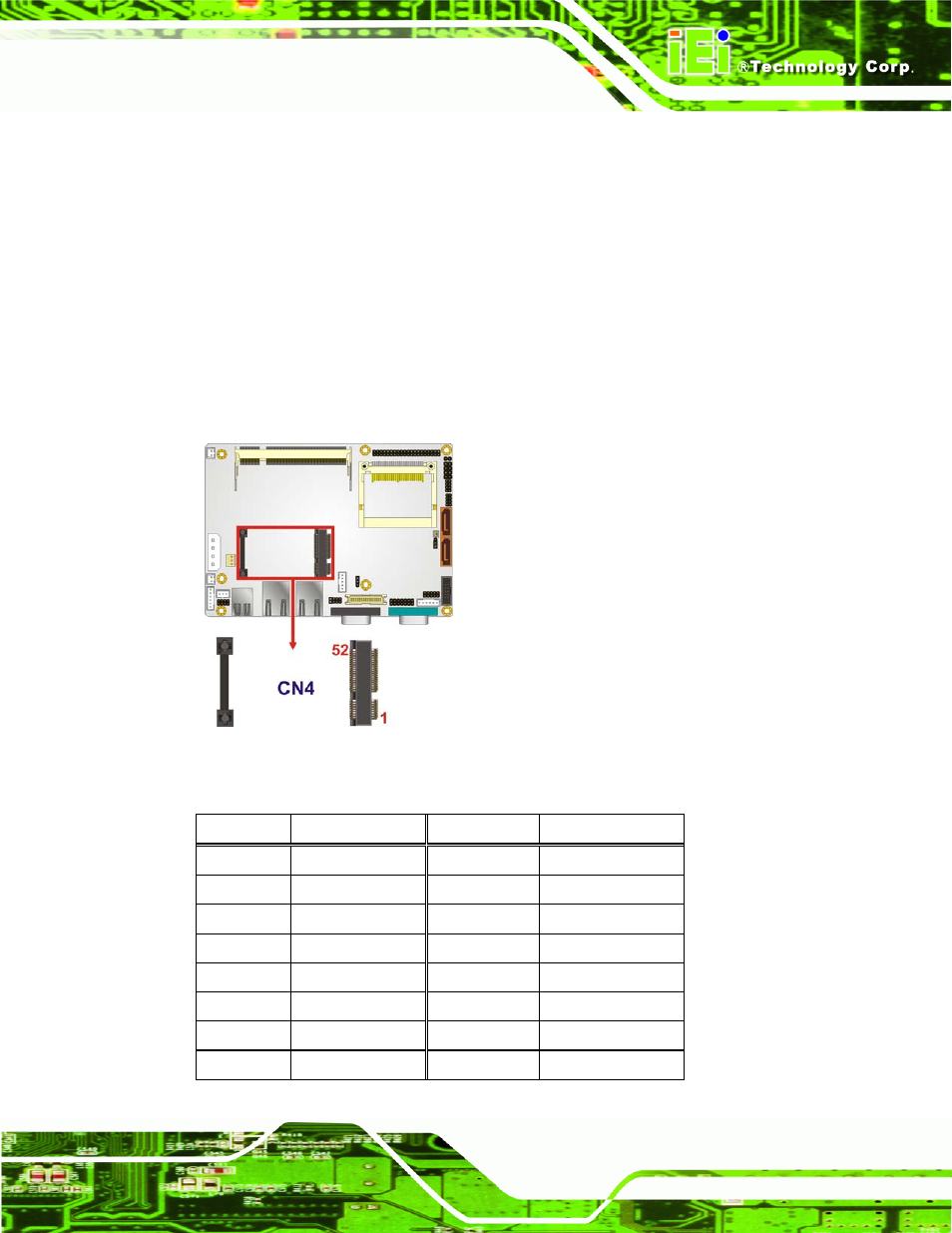

Figure 4-12: PCIe Mini Card Slot Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 PCIE_WAKE# 2 VCC3
3 N/C 4 GND
5 N/C 6 1.5V
7 CLKREQ# 8 LFRAME#
9 GND 10 LAD3
11 CLK- 12 LAD2
13 CLK+ 14 LAD1
15 GND 16 LAD0
