WAFER-945GSE 3.5” Motherboard
Page 88
RJ-45 Ethernet cable connectors
Serial port devices
USB devices
VGA monitors
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding WAFER-945GSE external peripheral interface connector
making sure the pins are properly aligned.
5.8.1 LAN Connection (Single Connector)
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 4.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the WAFER-945GSE. See
858H819H
Figure 5-19.

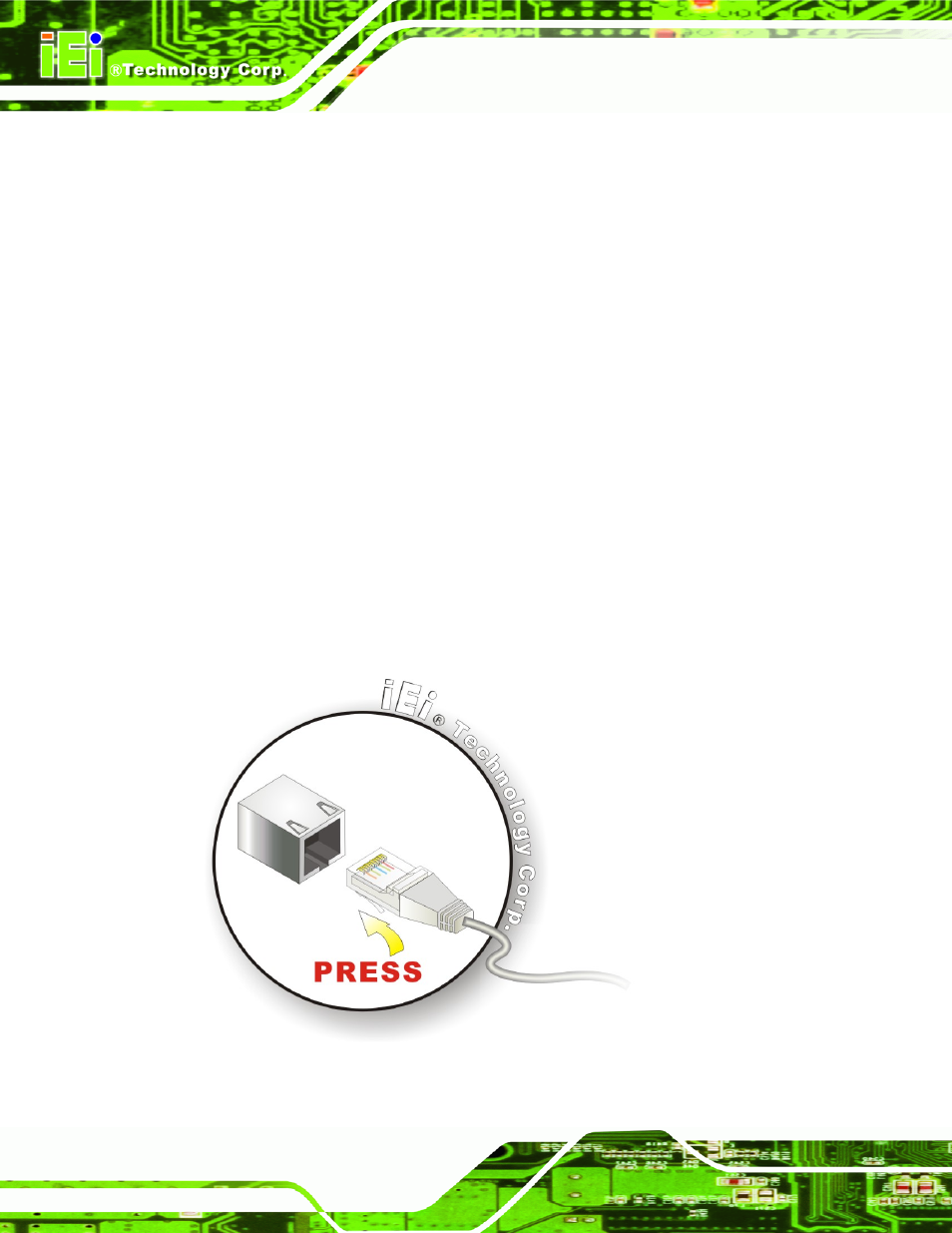

Figure 5-19: LAN Connection
