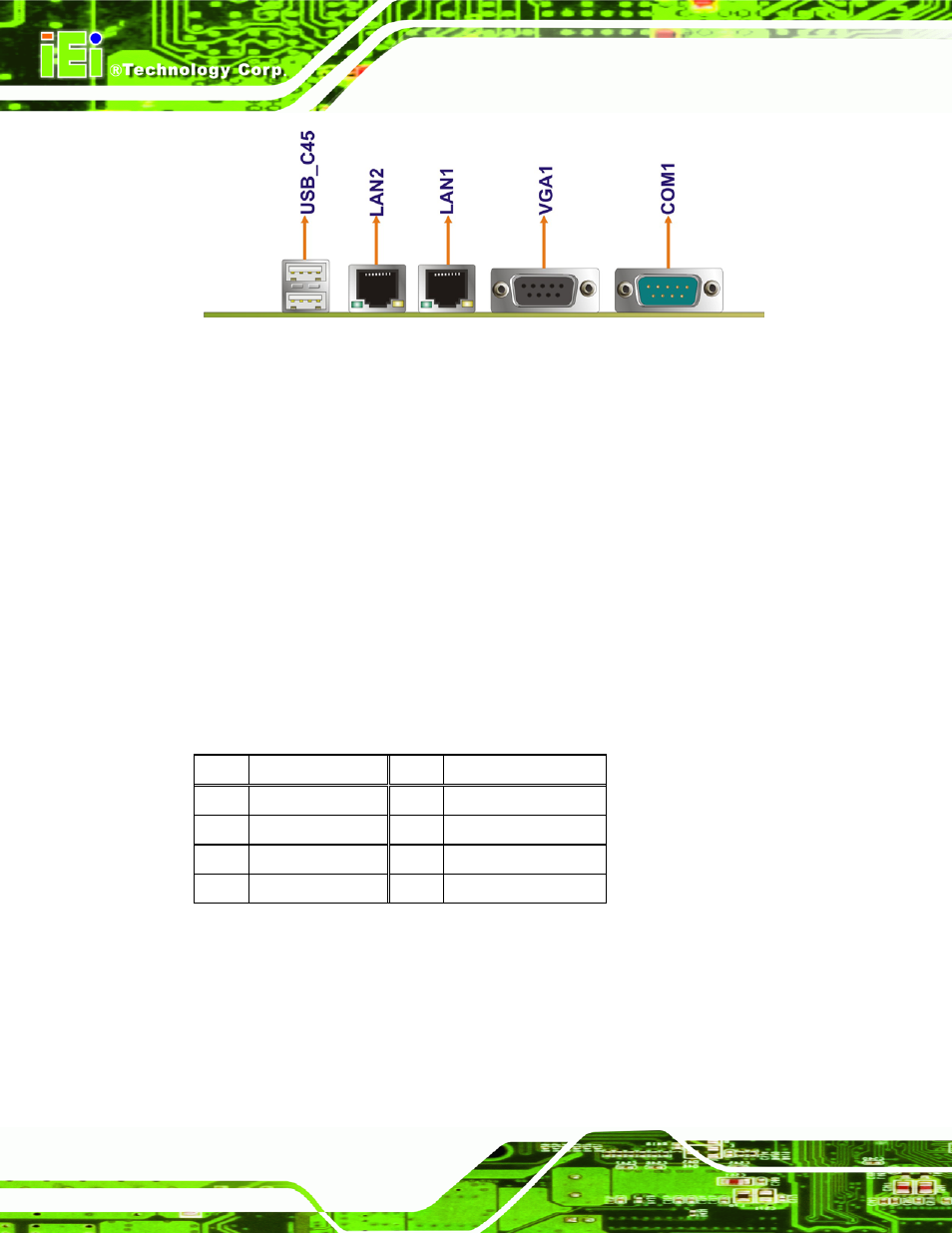

Figure 4-19: WAFER-945GSE External Peripheral Interface Connector
4.4.1 LAN Connectors
CN Label: LAN1 and LAN2
CN Type: RJ-45
CN Location: See
808H766H
Figure 4-19
CN Pinouts: See
809H767H
Table 4-20
The WAFER-945GSE is equipped with two built-in RJ-45 Ethernet controllers. The
controllers can connect to the LAN through two RJ-45 LAN connectors. There are two
LEDs on the connector indicating the status of LAN. The pin assignments are listed in the
following table:
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 4-20: LAN Pinouts
