PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC (+5V) 5 VCC (+5V)
2 DATA4- 6 DATA5-
3 DATA4+ 7 DATA5+
4 GND 8 GND
Table 4-23: USB Port Pinouts
4.4.4 VGA Connector
CN Label: VGA1
CN Type: 15-pin Female
CN Location: See
816H774H
Figure 4-19
CN Pinouts: See
817H775H
Figure 4-22 and
818H776H
Table 4-24
The WAFER-945GSE has a single 15-pin female connector for connectivity to standard
display devices.

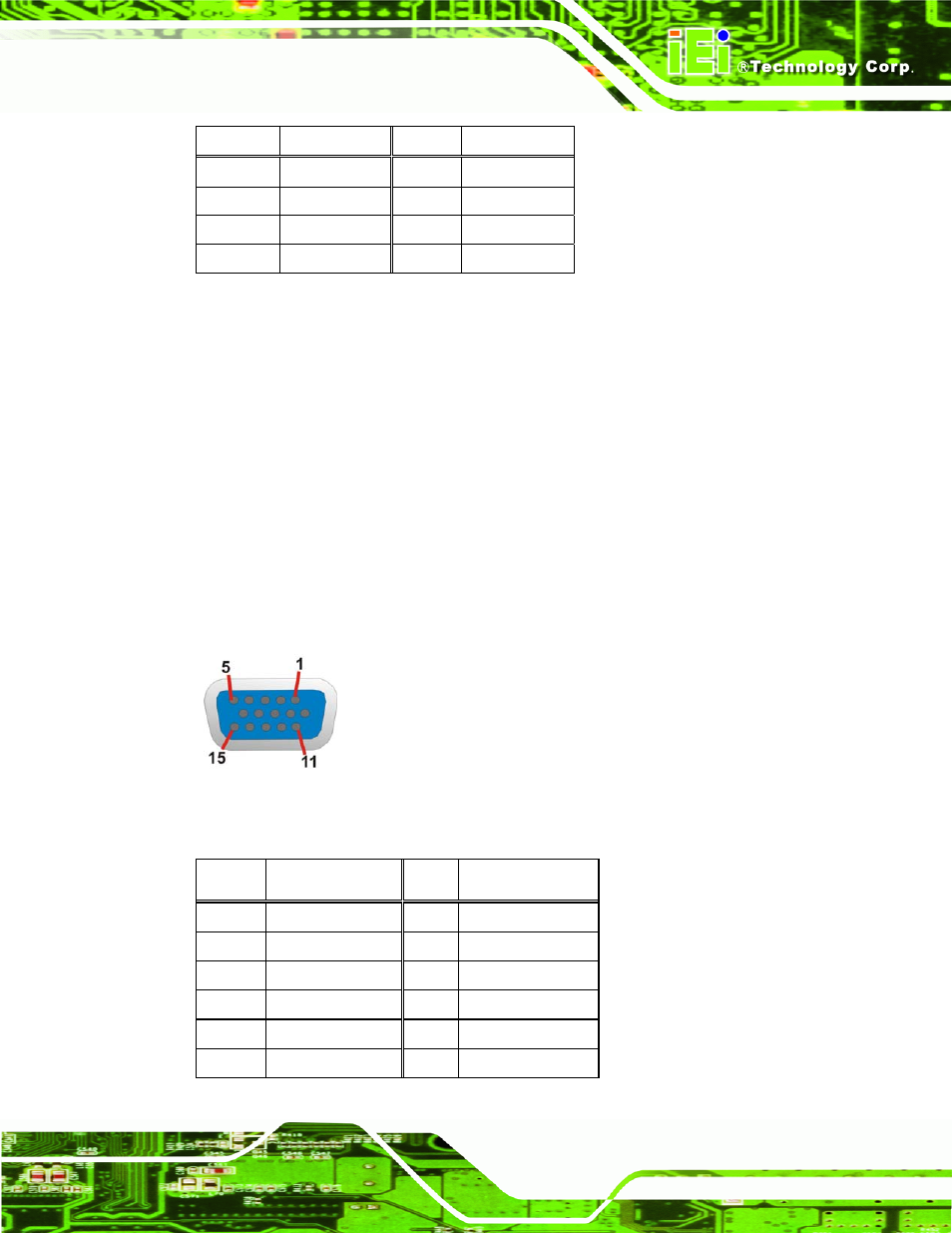

Figure 4-22: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 CRT_PLUG-
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDC DAT
