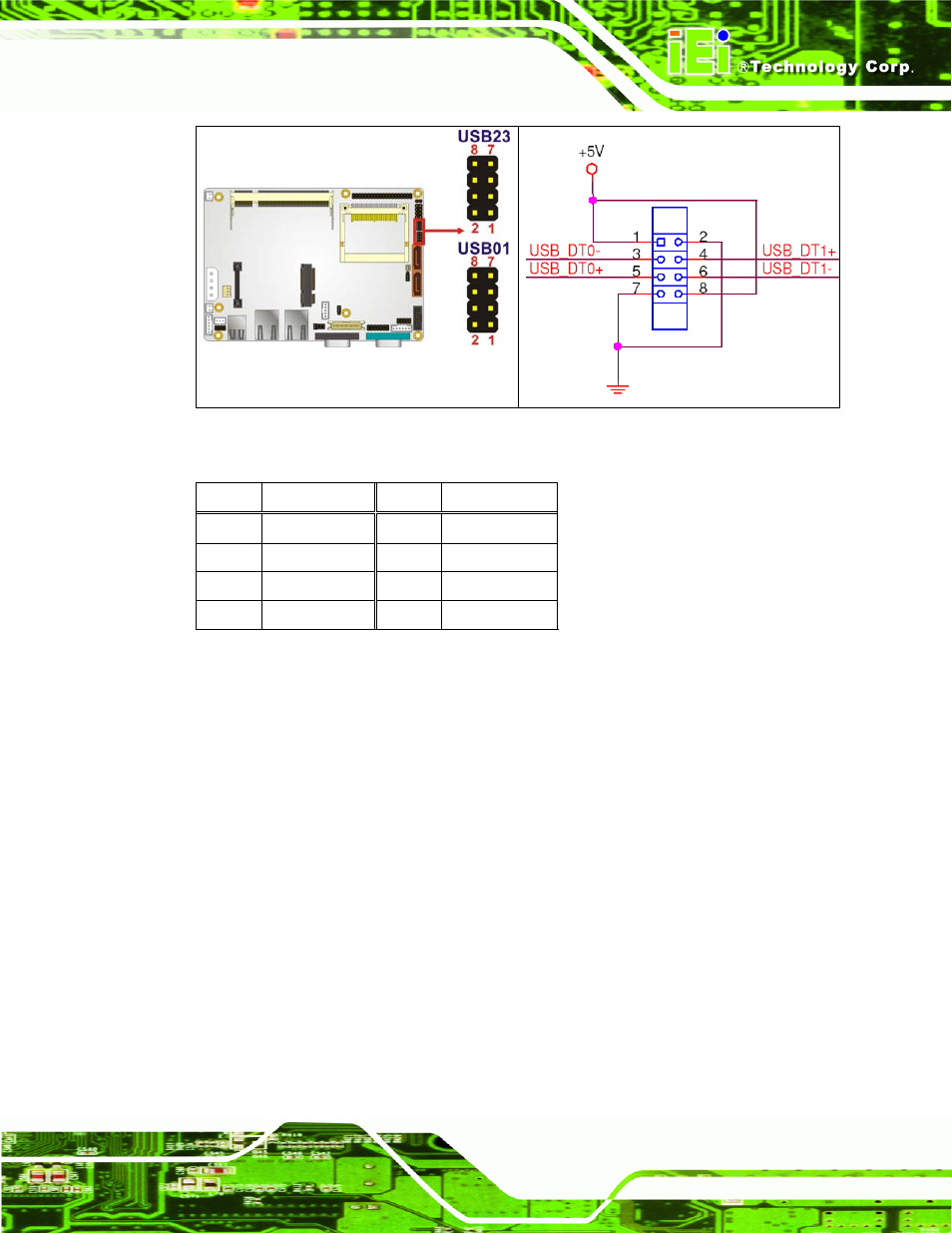

Figure 4-18: USB Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC

2 GND

3 DATA- 4 DATA+

5 DATA+ 6 DATA-

7 GND

8 VCC

Table 4-19: USB Port Connector Pinouts

4.4 External Peripheral Interface Connector Panel

803H765H

Figure 4-19 shows the WAFER-945GSE external peripheral interface connector (EPIC)

panel. The WAFER-945GSE EPIC panel consists of the following:

2 x RJ-45 LAN connectors

1 x Serial port connectors

2 x USB connectors

1 x VGA connector
