WAFER-945GSE 3.5” Motherboard

Page 36

4.1 Peripheral Interface Connectors

Section

765H723H

4.2 shows peripheral interface connector locations. Section

766H724H

4.2 lists all the

peripheral interface connectors seen in Section

767H725H

4.2.

4.1.1 WAFER-945GSEWAFER-945GSE Layout

768H726H

Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

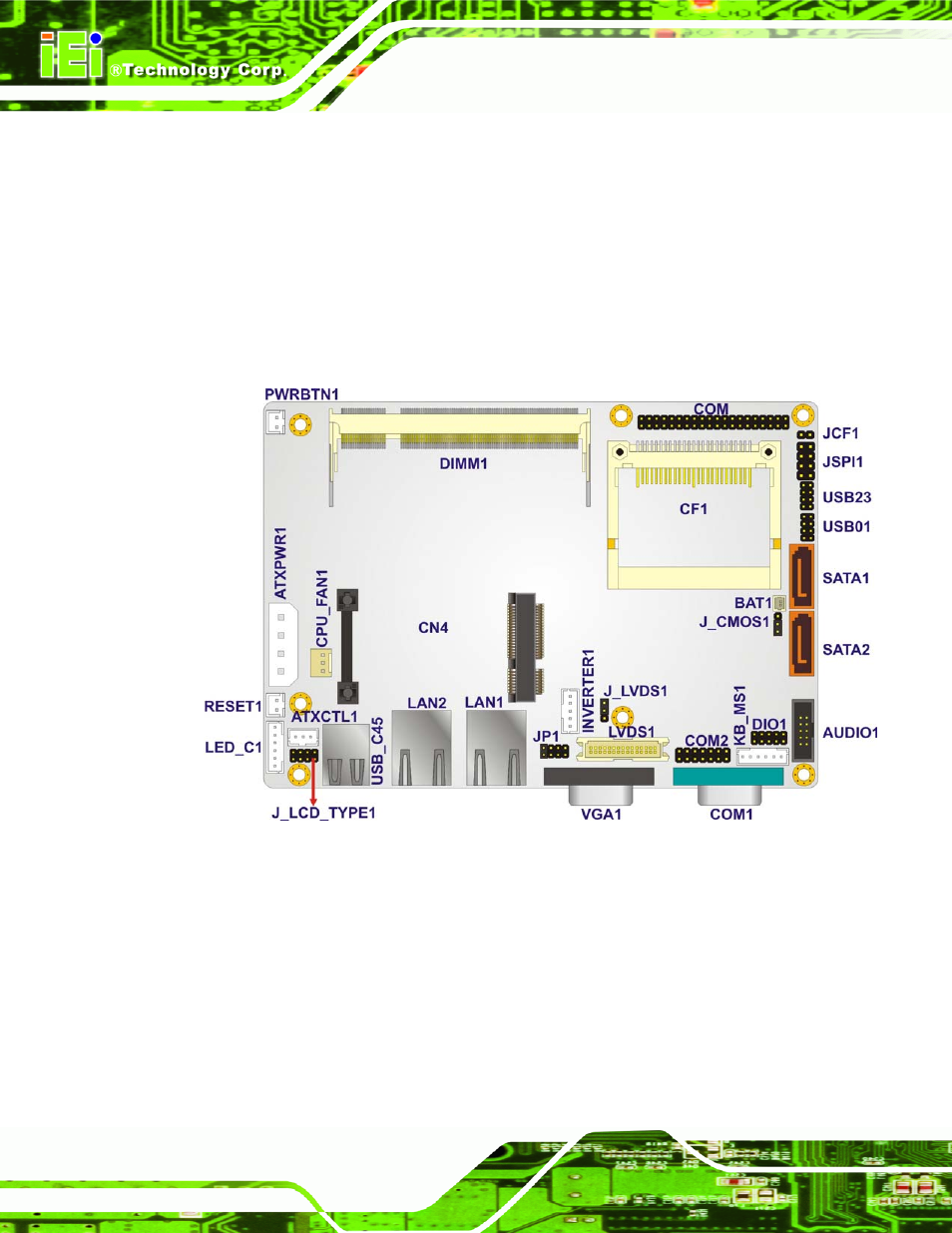

Figure 4-1: Connector and Jumper Locations [Front Side]

4.2 Peripheral Interface Connectors

769H727H

Table 4-1 shows a list of the peripheral interface connectors on the WAFER-945GSE.

Detailed descriptions of these connectors can be found below.
