4.3.12 Power Button Connector

CN Label:

PWRBTN1

CN Type:

2-pin wafer (1x2)

CN Location:

See

753H

Figure 4-13

CN Pinouts:

See

754H

Table 4-14

The power button connector is connected to a power switch on the system chassis to

enable users to turn the system on and off.

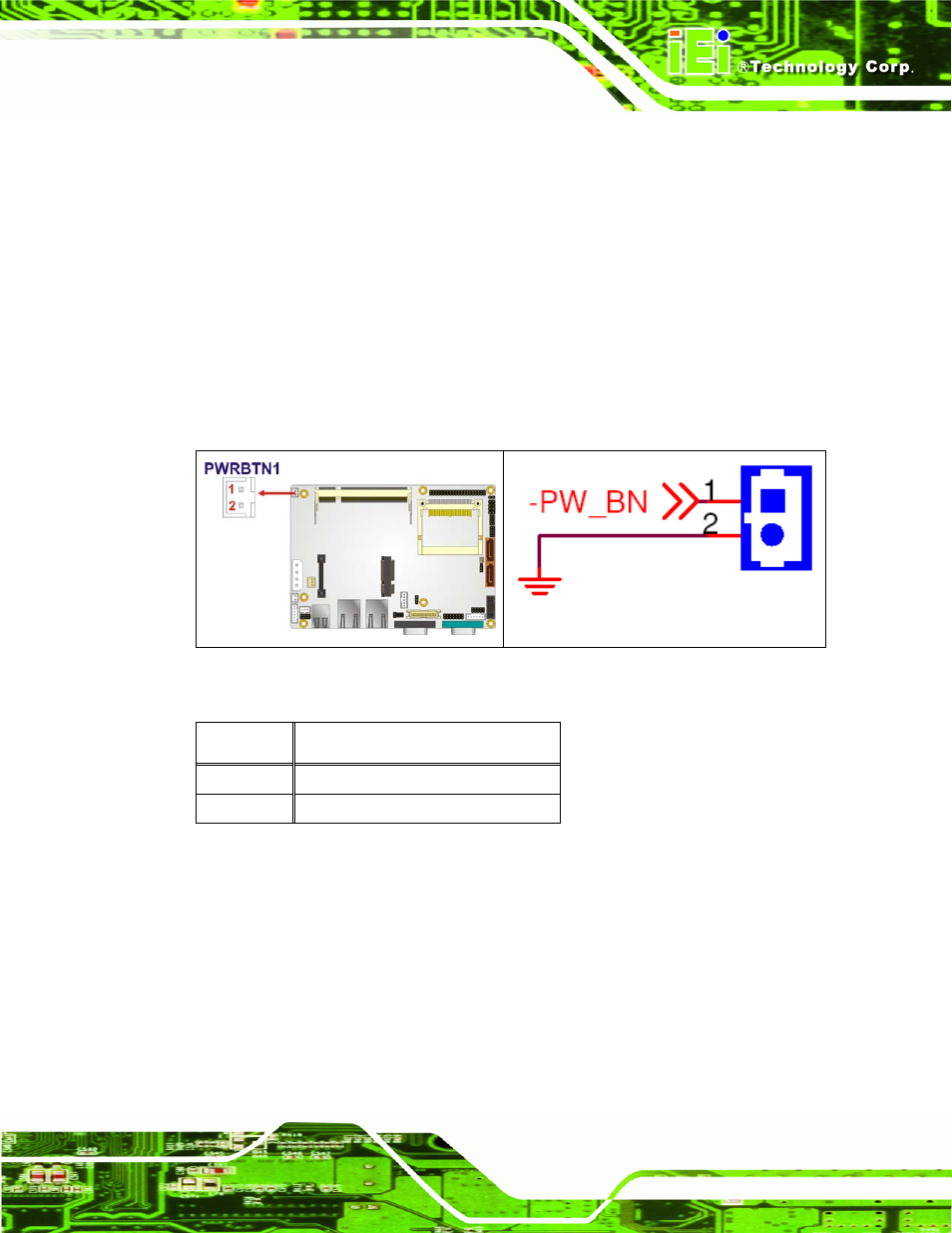

Figure 4-13: Power Button Connector Location

PIN NO.

DESCRIPTION

1 Power

Switch

2 GND

Table 4-14: Power Button Connector Pinouts

4.3.13 Reset Button Connector

CN Label:

RESET1

CN Type:

2-pin wafer (1x2)

CN Location:

See

755H

Figure 4-14

CN Pinouts:

See

756H

Table 4-15
