WAFER-945GSE 3.5” Motherboard
Page 46

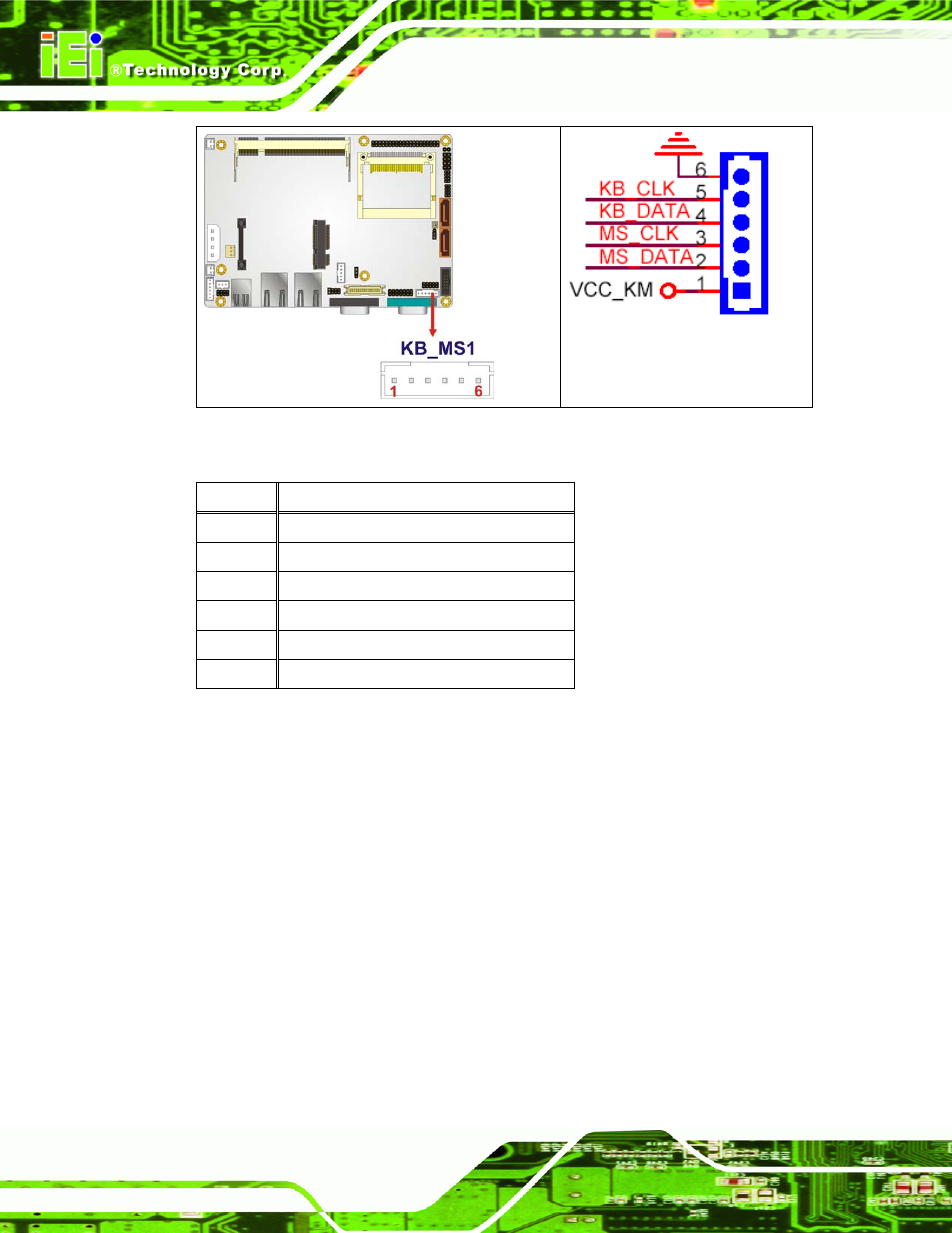

Figure 4-9: Keyboard/Mouse Connector Location
PIN NO. DESCRIPTION
1 +5V KB DATA
2 MS DATA
3 MS CLK
4 KB DATA
5 KB CLK
6 GROUND
Table 4-10: Keyboard/Mouse Connector Pinouts
4.3.9 LED Connector
CN Label: LED_C1
CN Type: 6-pin wafer (1x6)
CN Location: See
747H
Figure 4-10
CN Pinouts: See
748H
Table 4-11
The LED connector connects to an HDD indicator LED and a power LED on the system
chassis to inform the user about HDD activity and the power on/off status of the system.
