WAFER-945GSE 3.5” Motherboard
Page 74
Short 5-6
Short 7-8
RS-485 with RTS
control
Table 5-5: COM 2 Function Select Jumper Settings
The COM 2 Function Select jumper location is shown in
797H
Figure 5-7.

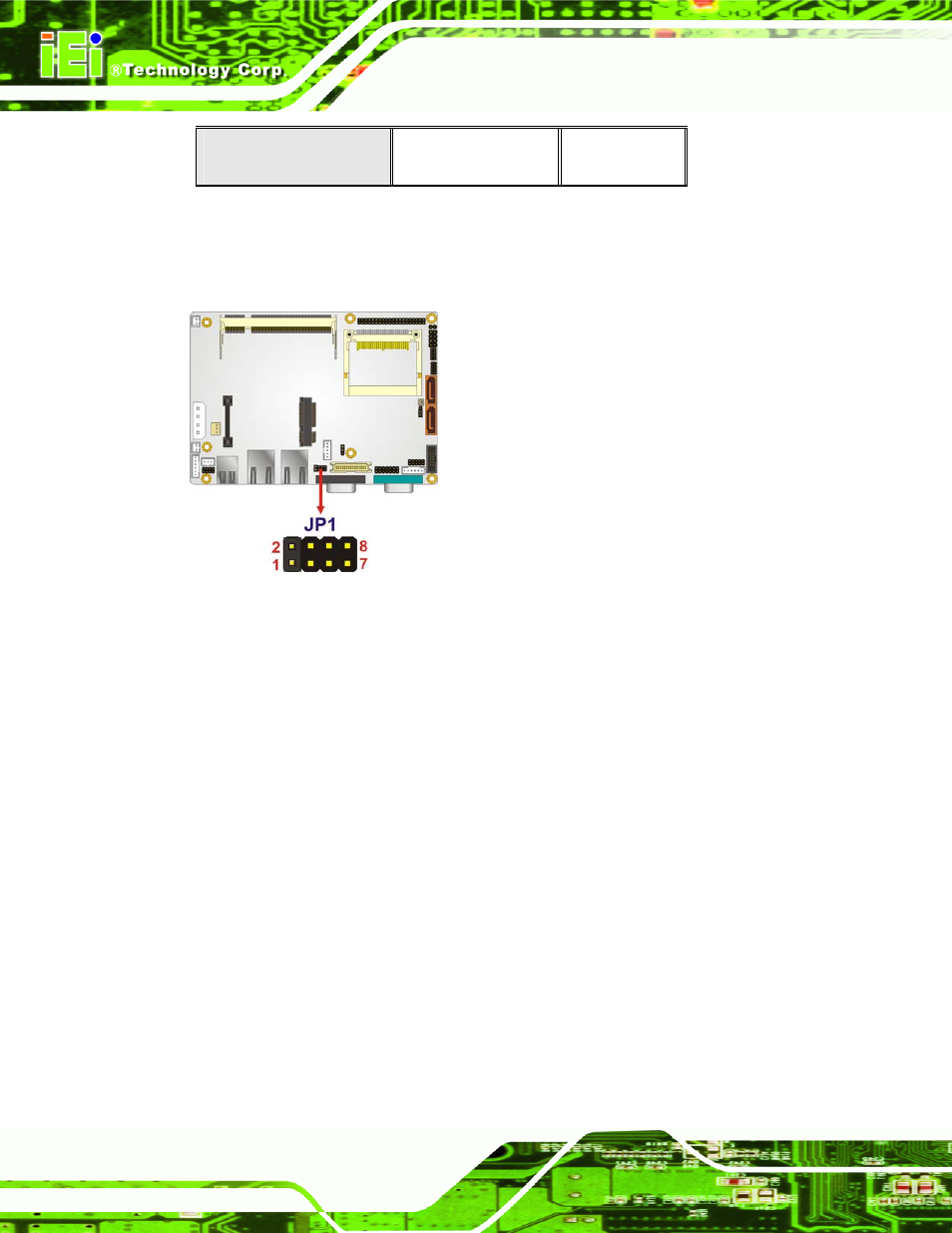

Figure 5-7: COM 2 Function Select Jumper Location
5.5.5 LVDS1 Panel Resolution Jumper
Jumper Label: J_LCD_TYPE1
Jumper Type: 8-pin header
Jumper Settings: See
798H
Table 5-6
Jumper Location: See
799H
Figure 5-8
The LVDS1 Panel Resolution jumper allows the resolution of the LVDS screens
connected to the LVDS1 connector to be configured. The LVDS1 Panel Resolution jumper
settings are shown in
800H
Table 5-6.
