WAFER-945GSE 3.5” Motherboard
Page 45

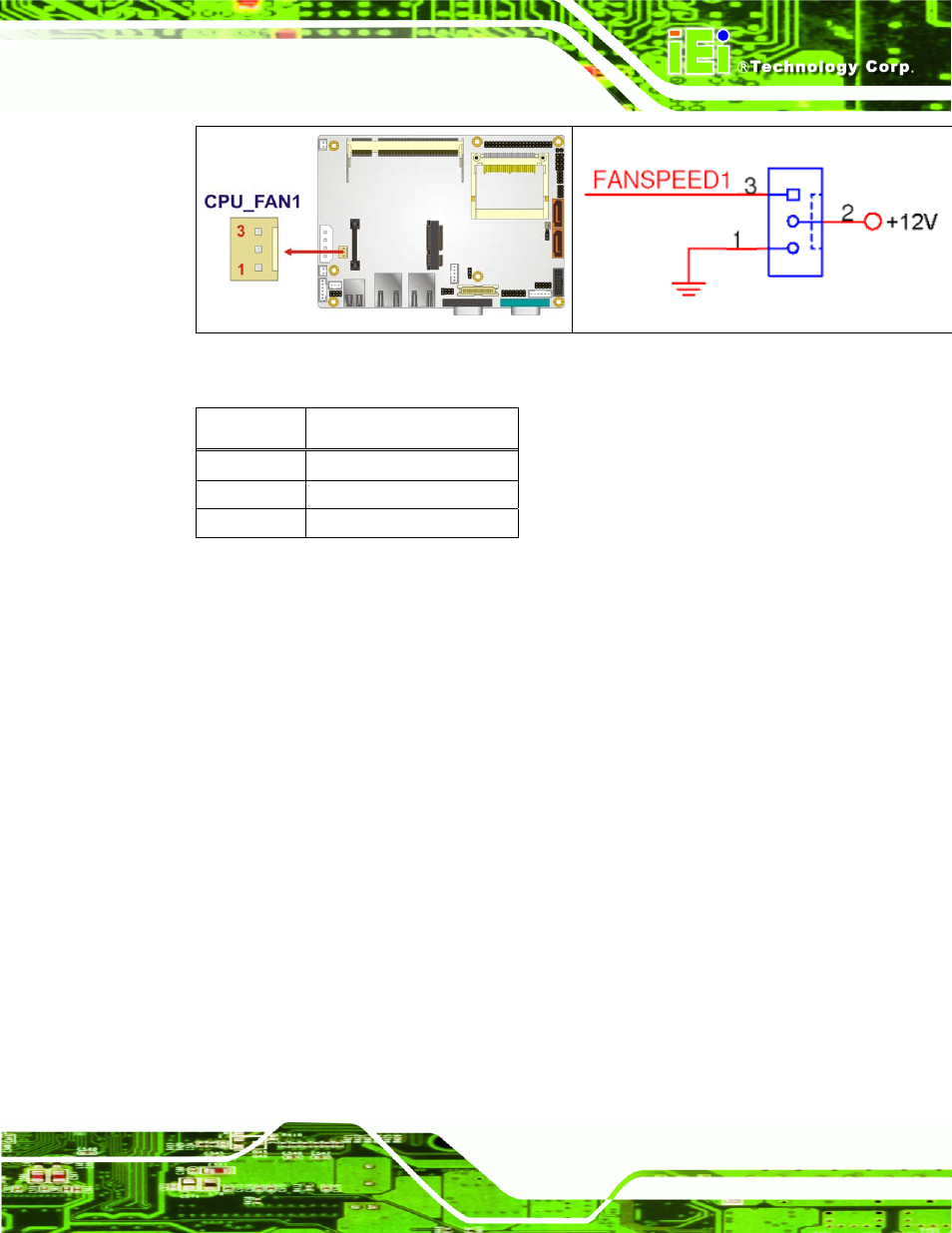

Figure 4-8: +12V Fan Connector Location
PIN NO. DESCRIPTION
1 GND
2 +12V
3 Fan Speed Detect
Table 4-9: +12V Fan Connector Pinouts
4.3.8 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type: 6-pin header (1x6)
CN Location: See
745H
Figure 4-9
CN Pinouts: See
746H
Table 4-10
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.
