WAFER-945GSE 3.5” Motherboard
Page 38
Connector Type Label
Ethernet connector RJ-45 LAN1
Ethernet connector RJ-45 LAN2
RS-232 serial port connector Male DB-9 COM1
Dual USB port USB port USB_C45
VGA port connector 15-pin female VGA1
Table 4-2: Rear Panel Connectors
4.3 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. This section has complete descriptions of
all the internal, peripheral connectors on the WAFER-945GSE.
4.3.1 ATX Power Connector
CN Label: ATXPWR1
CN Type: 4-pin AT power connector (1x4)
CN Location: See
731H
Figure 4-2
CN Pinouts: See
732H
Table 4-3
The 4-pin ATX power connector is connected to an ATX power supply.

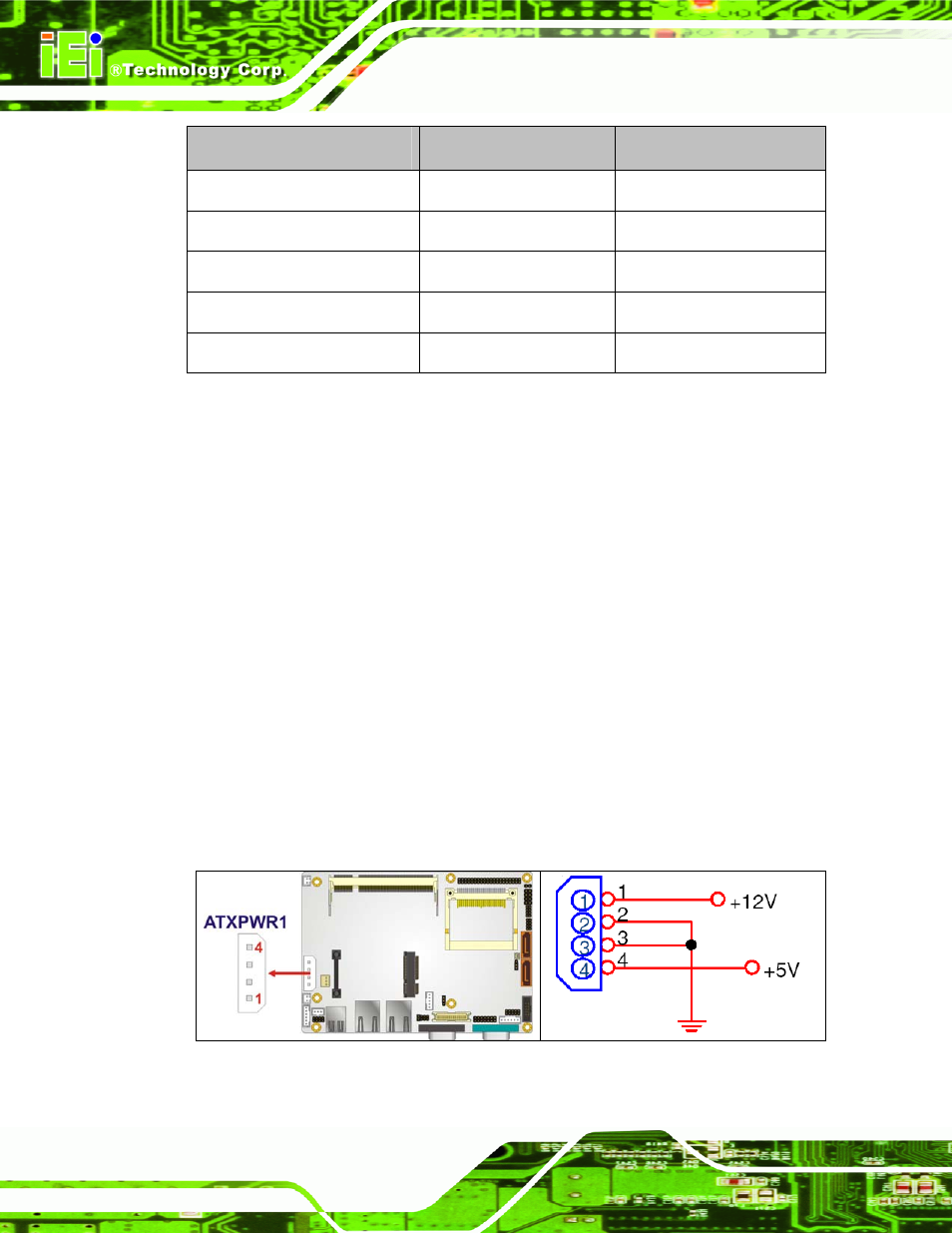

Figure 4-2: ATX Power Connector Location
