WAFER-945GSE 3.5” Motherboard
Page 52
The reset button connector is connected to a reset switch on the system chassis to enable
users to reboot the system when the system is turned on.

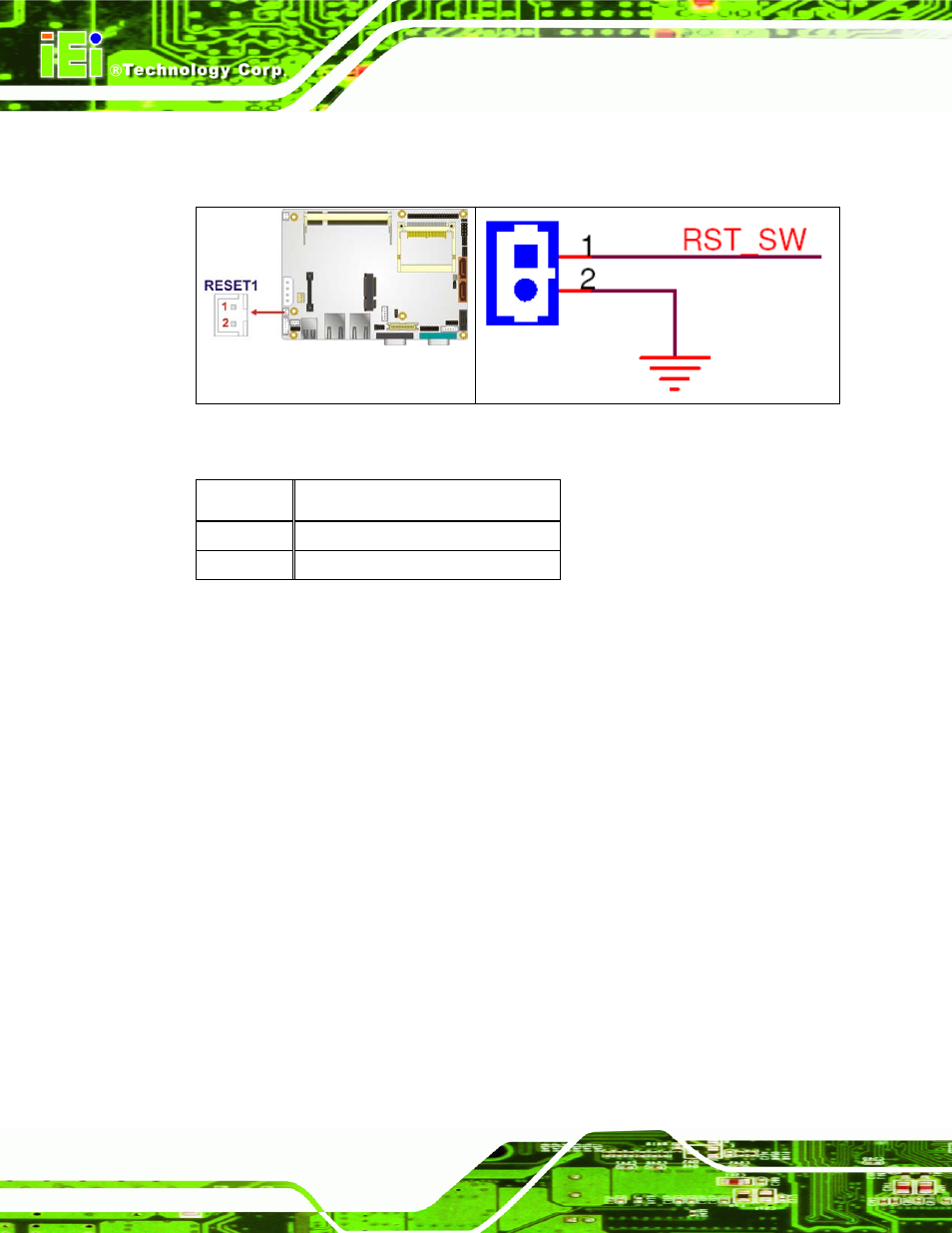

Figure 4-14: Reset Button Connector Locations
PIN NO. DESCRIPTION
1 Reset Switch
2 GND
Table 4-15: Reset Button Connector Pinouts
4.3.14 SATA Drive Connectors
CN Label: SATA1, SATA2
CN Type: 7-pin SATA drive connectors
CN Location: See
793H757H
Figure 4-15
CN Pinouts: See
794H758H
Table 4-16
The SATA drive connectors can be connected to SATA drives and support up to 3.0 Gb/s
data transfer rate.
