WAFER-945GSE 3.5” Motherboard
Page 41
4.3.4 Backlight Inverter Connector
CN Label: INVERTER1
CN Type: 5-pin wafer (1x5)
CN Location: See
737H
Figure 4-5
CN Pinouts: See
738H
Table 4-6
The backlight inverter connectors provide the backlights on the LCD display connected to
the WAFER-945GSE with +12V of power.

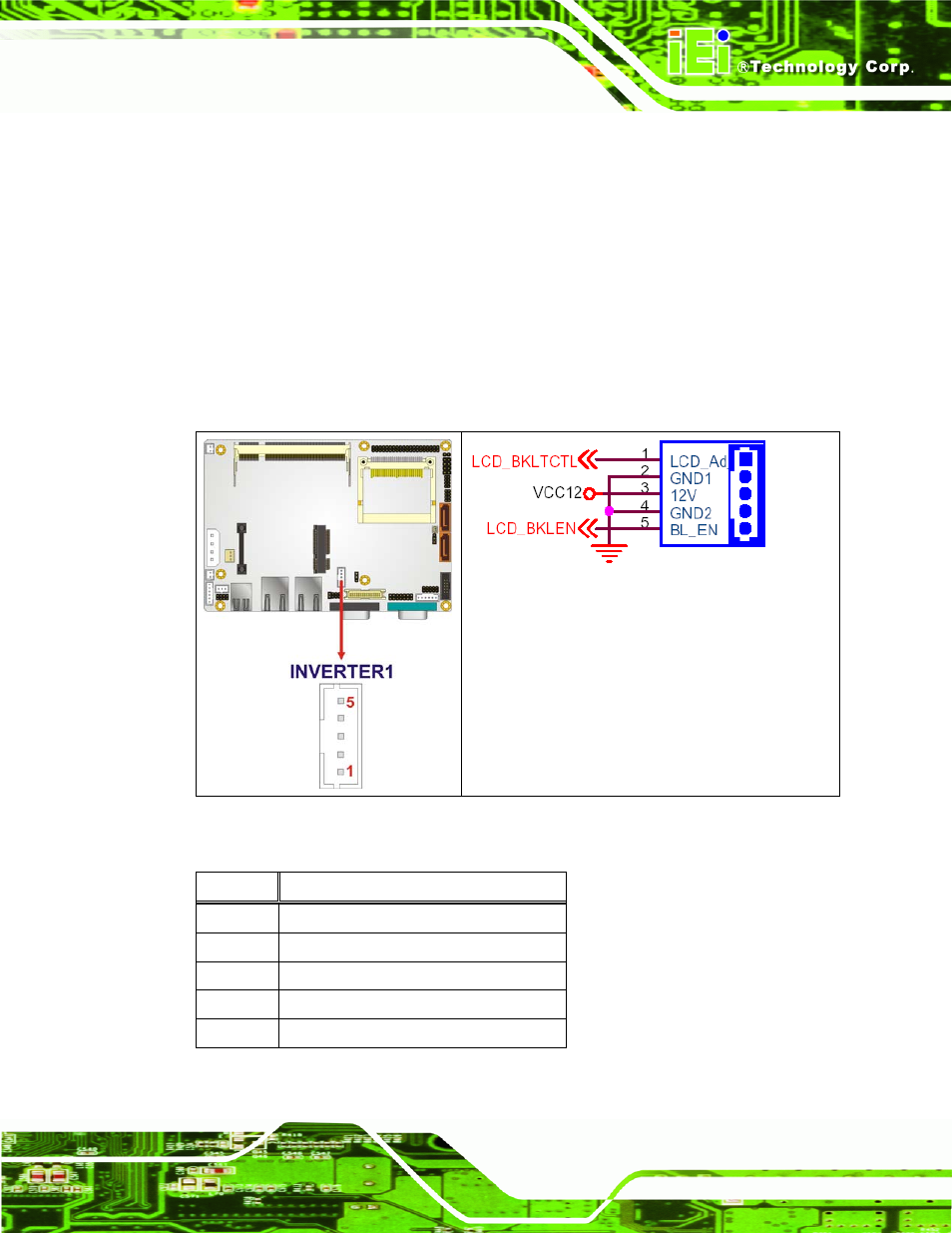

Figure 4-5: Panel Backlight Connector Pinout Locations
PIN NO. DESCRIPTION
1 LCD Backlight Control
2 GROUND
3 +12V
4 GROUND
5 BACKLIGHT Enable
Table 4-6: Panel Backlight Connector Pinouts
