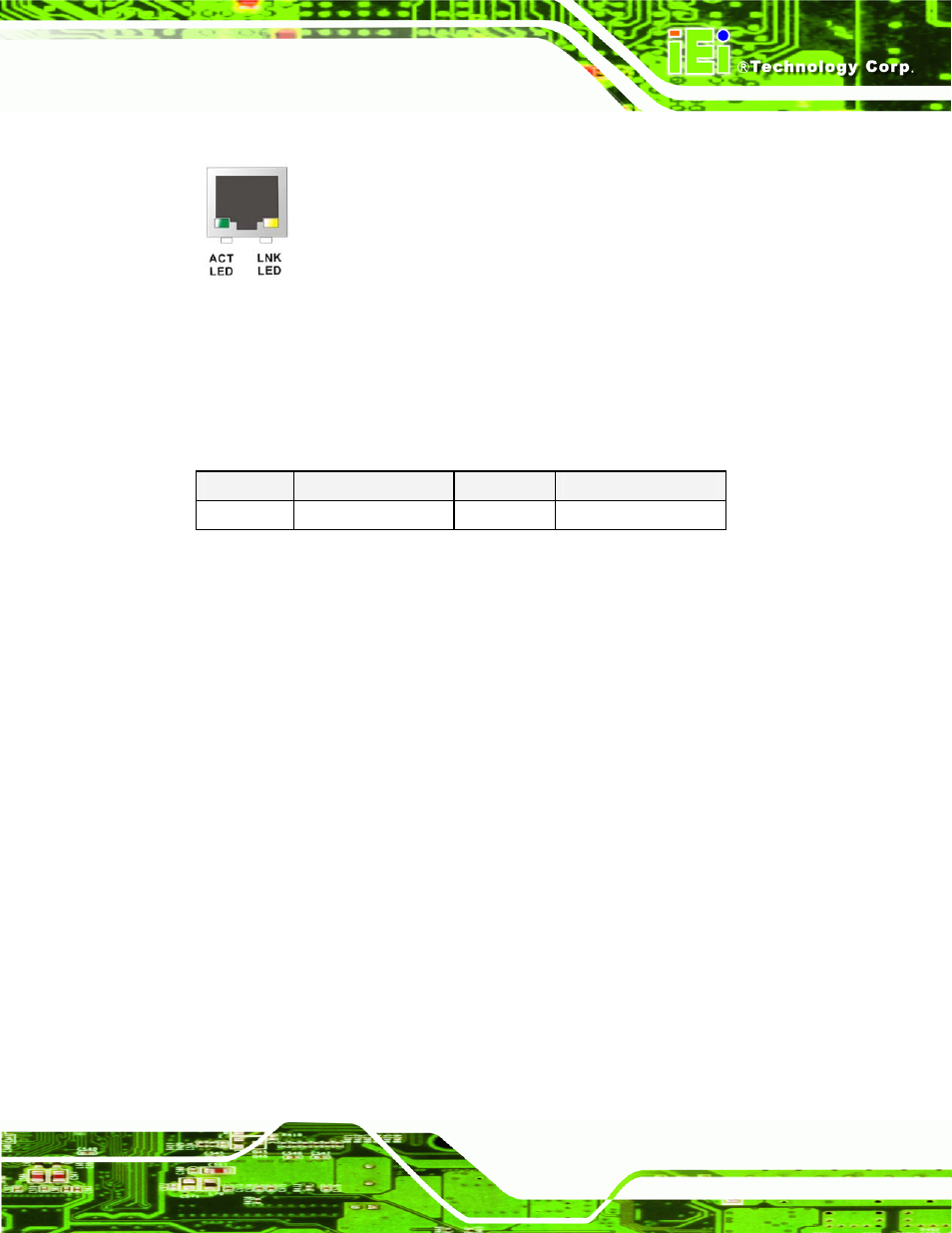

Figure 4-20: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
810H768H
Table 4-21.
STATUS DESCRIPTION STATUS DESCRIPTION
GREEN Activity YELLOW Linked
Table 4-21: RJ-45 Ethernet Connector LEDs
4.4.2 Serial Port Connector (COM1)
CN Label: COM1
CN Type: DB-9 connectors
CN Location: See
811H769H
Figure 4-19 (see 2)
CN Pinouts: See
812H770H
Table 4-22 and
813H771H
Figure 4-21
The 9-pin DB-9 serial port connectors are connected to RS-232 serial communications
devices.
