WAFER-945GSE 3.5” Motherboard
Page 108
Disabled Prevents the BIOS from using 32-bit data transfers.
Enabled D EFAULT Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
6.3.3 Super IO Configuration
Use the Super IO Configuration menu (
878H837H
BIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.

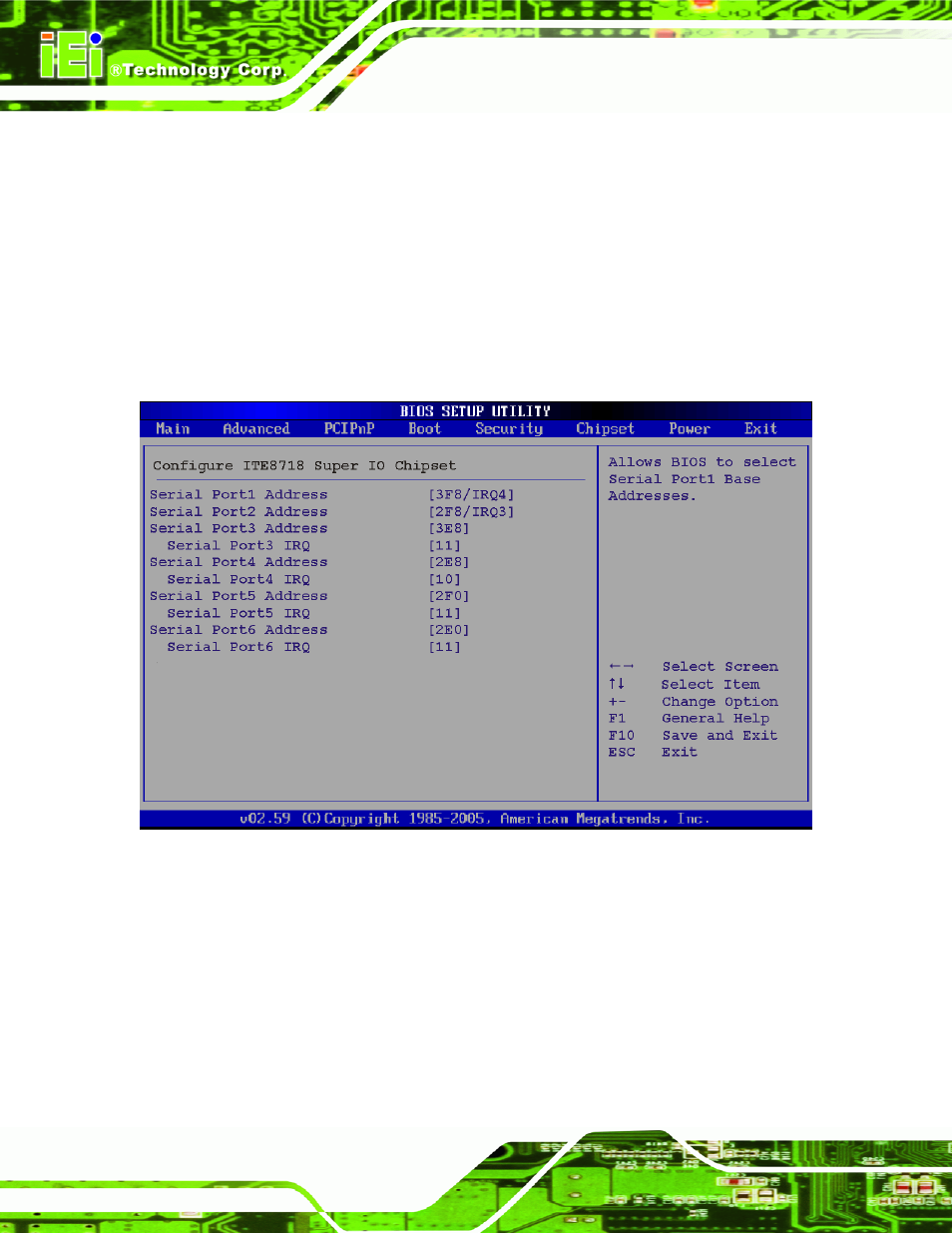

BIOS Menu 6: Super IO Configuration
Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Disabled No base address is assigned to Serial Port 1
3F8/IRQ4 D EFAULT Serial Port 1 I/O port address is 3F8 and the interrupt
