WAFER-945GSE 3.5” Motherboard
Page 86
In, connects to a microphone. The remaining two audio jacks, Line-In and Line-Out,
connect to two speakers. To install the audio kit, please refer to the steps below:
Step 1: Locate the audio connector. The location of the 10-pin audio connector is
shown in Chapter 3.
Step 2: Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit
connector. Pin 1 on the audio kit connector is indicated with a white dot. See
817H
Figure 5-17.

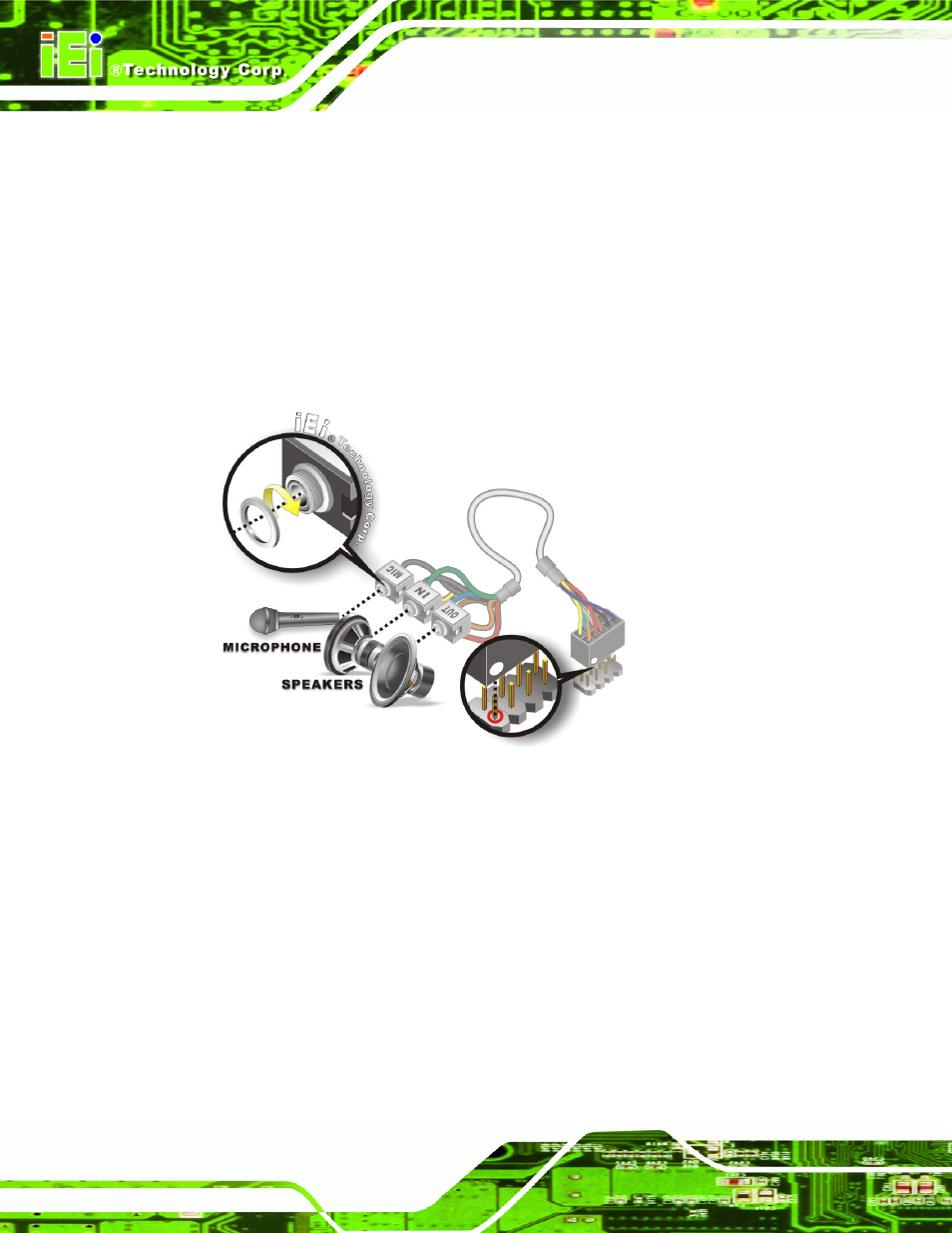

Figure 5-17: Audio Kit Cable Connection
Step 3: Connect the audio devices. Connect one speaker to the line-in audio jack, one
speaker to the line-out audio jack and a microphone to the mic-in audio jack.
Step 0:
5.7.8 USB Cable (Dual Port without Bracket) (Optional)
The WAFER-945GSE is shipped with a dual port USB 2.0 cable. To connect the USB
cable connector, please follow the steps below.
Step 1: Locate the connectors. The locations of the USB connectors are shown in
