WAFER-945GSE 3.5” Motherboard
Page 69

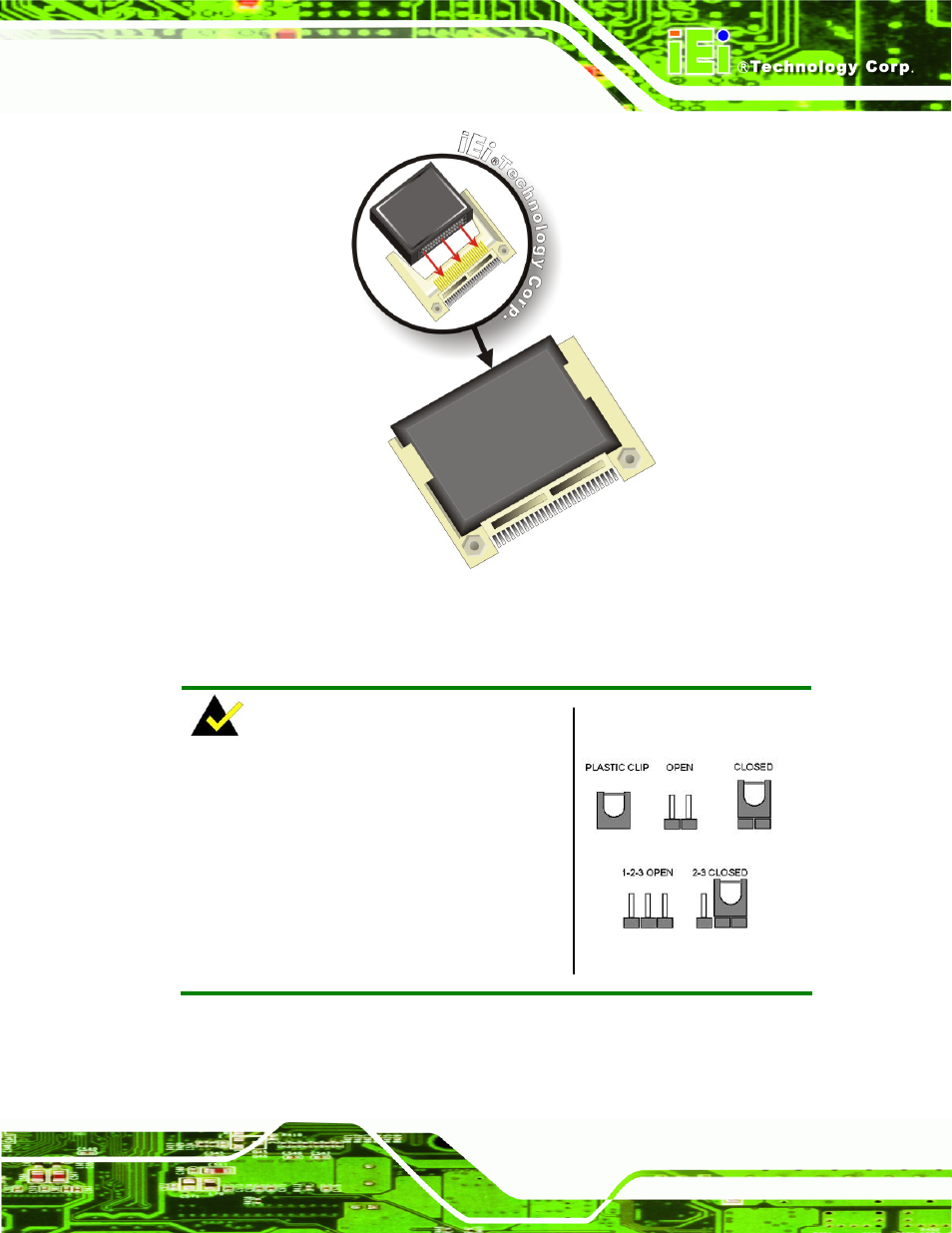

Figure 5-2: CF Card Installation
5.5 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper. Figure 5-3: Jumper Locations
Before the WAFER-945GSE is installed in the system, the jumpers must be set in
accordance with the desired configuration. The jumpers on the WAFER-945GSE are
listed in
829H781H
Table 5-1.
