WAFER-945GSE 3.5” Motherboard
Page 42
4.3.5 CompactFlash® Socket
CN Label: CF1
CN Type: 50-pin header (2x25)
CN Location: See
739H
Figure 4-6
CN Pinouts: See
740H
Table 4-7
A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the
WAFER-945GSE.

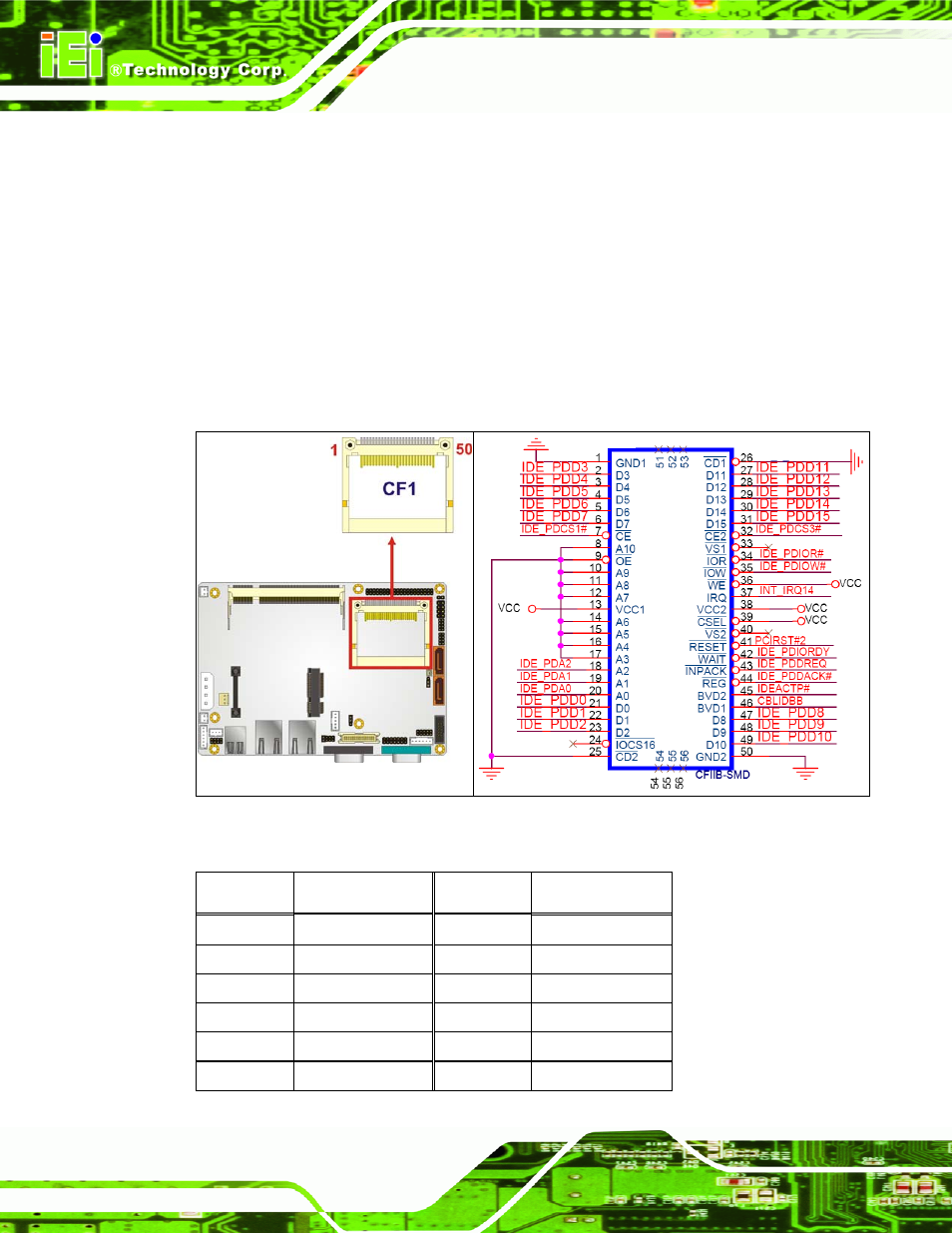

Figure 4-6: CF Card Socket Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 26 VCC-IN CHECK1
2 DATA 3 27 DATA 11
3 DATA 4 28 DATA 12
4 DATA 5 29 DATA 13
5 DATA 6 30 DATA 14
6 DATA 7 31 DATA 15
